$22.28
$43.67

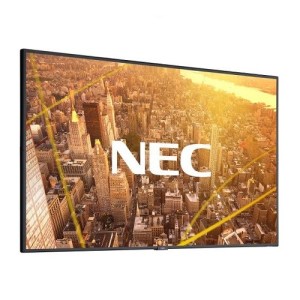

Product Specifications Display Panel Technology S-IPS Viewable Image Size 75 “ Aspect Ratio 16:9 Native Resolution 3840×2160 Supported Resolutions DisplayPort: V1.2 (HDCP 1.3) VGA60, SVGA60, XGA60, WXGA60, SXGA60, UXGA60, WUXGA60, 1920 x 1080 (60Hz), 1080p, 1080i, 720p@50Hz/60Hz, 576p@50Hz, 480p@60Hz, 3840 x 2160 (24Hz/30Hz/25Hz/60Hz (DisplayPort 1.2)) HDMI: (HDCP 1.4/2.2) VGA60, SVGA60, XGA60, WXGA60, SXGA60, UXGA60, WUXGA60, 1920 x 1080 (60Hz), 1080p, 1080i, 720p@50Hz/60Hz, 576p@50Hz, 480p@60Hz, 576i@50Hz, 480i@60Hz, 3840 x 2160 (24Hz/30Hz/25Hz/60Hz (MODE2)), 4096 x 2160 (30Hz, 24Hz, 25Hz, 60Hz (MODE2)) Pixel Pitch 0.43 mm Pixels Per Inch 59 PPI Brightness (maximum) 350 cd/m2 Contrast Ratio (typical) 1200:1 (without local dimming) Viewing Angle (typical) 178° Vert., 178° Hor. (89U/89D/89L/89R) @ CR>10 Response Time (typical) 8 ms Refresh Rate 60Hz Active Screen Area 64.95 x 36.53 in. / 1649.6 x 927.9mm Orientation Landscape/Portrait Dimming Capability Local Dimming Capable Displayable Colors More than 1.07 billion Synchronization Range Horizontal (Analog/Digital) 26kHz – 135.0kHz Signal Compatibility/Connectivity PC Signal Compatibility Yes Macintosh Signal Compatibility Yes Input Terminals Digital: HDMI 2.0 (3), DisplayPort 1.2 (2) Audio: Audio Mini-Jack, DisplayPort Audio, HDMI Audio External Control: RS-232C, LAN, IR Remote Input Data: microSD (Media Player), USB 2.0 (Media Player, USB (Service), USB Type-B (Upstream), USB x 2 (Both for Compute Module, 1 x 5V/2A Powered) Output Terminals Digital: DisplayPort (Outputs DisplayPort1 or Option) Audio: Audio Mini-Jack, External Speaker Out (2), DisplayPort Audio External Control: LAN Power Consumption (typical) On 195W ECO Mode Standby 0.5W Network Standby 2W Power Consumption (max) 375W (250W Brightness Max) Input Current 4.4A @ 100V 1.9A @ 240V Physical Specifications Bezel Width (Left/Right, Top/Bottom) 0.58in. / 0.58in. ; 0.58in. / 0.58in. : 14.8mm/14.8mm, 14.8mm/14.8mm Dimensions (WxHxD) With stand: 1681.2 x 996.8 x 606mm / 66.19 x 39.24 x 23.9 in. Without stand: 66.19 x 37.78 x 2.8 in. / 1681.2 x 959.6 x 71.1 mm Shipping: 1830.0 x 1190.0 x 280.0mm / 72.05 x 46.85 x 11.02 in. Weight Net Weight (with stand): 126.1 lbs. / 57.20kg Net Weight (without stand): 116 lbs. / 52.61 kg. Shipping: 144.4 lbs. / 65.5kg VESA Hole Configuration 400 x 400mm (M8 x 16mm) 600 x 400mm (M8 x 16mm) Environmental Conditions Operating Temperature 32-104°F / 0-40°C Operating Humidity 20-80% Operating Altitude 9843 ft. / 3000m Storage Temperature -4-140°F / -20-60°C Storage Humidity 10-90% Storage Altitude 40,000 ft. / 12,192m Limited Warranty (parts & labor) 3 Years Advanced Replacement Additional Features Raspberry Pi Compute Module Compatible SpectraView Engine Color Control (Including Uniformity Adjustment) Integrated OPS Option Slot Localized Dimming On-Screen Key Guide Ethernet Control and Communication USB Upstream/Downstream RS-232 Control and Communication CEC Communication HDCP 1.4 and 2.2 support through HDMI HDCP 1.3 support through DisplayPort Firmware via USB/Network Landscape/Portrait Capable Image Flip TileMatrix (10 x 10) Carbon footprint meter 24/7 Scheduler with Real Time Clock Holiday Settings Screen saver function Multi-Picture Mode 28% haze panel Ambient light sensor Screen Saver Function Optional Human Sensor Intelligent Wireless Data (Near Field Communications) Metal rear cabinet Carrying Handles Variable picture modes Advanced video settings (Noise Reduction, Adaptive Contrast) Input labeling Backlight adjust Aspect ratio control Built-in 10W x 2 speakers Powered USB LED edge-lit backlighting NaViSet Administrator Compatible Auto ID/IP Address Control Crestron RoomView Support AMX Beacon PJLInk Support HDMI and DisplayPort Cable Included
Nec Professional Displays
