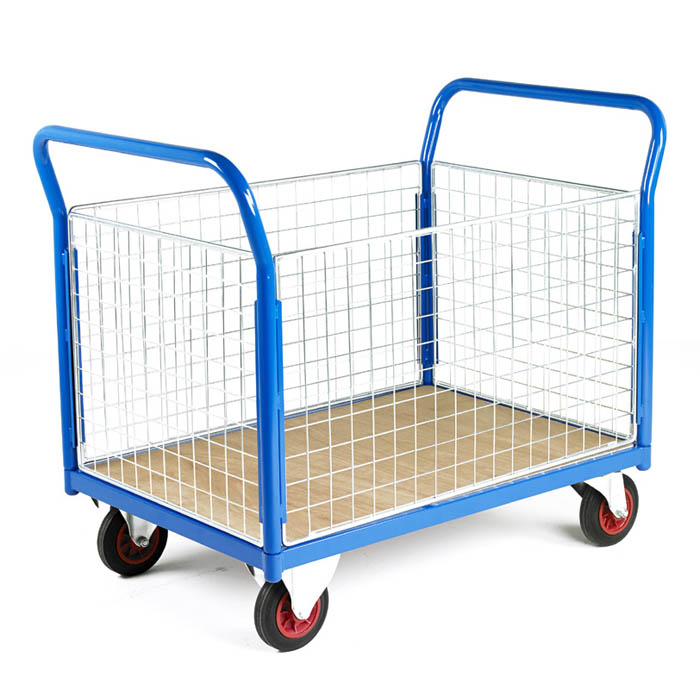

Platform Trolley with Removable Mesh Sides Capacity 500kg Choice of three deck sizes Substantial plywood deck. Blue epoxy finished frame with zinc plated mesh infill end and side panels. All steel welded frames. 2 swivel 2 fixed castors, with 160mm diameter rubber tyred roller bearing wheels. All side and end panels removable. Technical Specifications: Capacity: 500 kg Deck Height: 235 mm Load Restraint Height: 520 mm Overall Height: 985 mm Overall Width: Deck Width 25 mm Wheels: ø 160 mm Rubber Overall Length: Single End: Deck Length 85 mm Double End: Deck Length 145 mm Optional Stop Brake Optional Bumper Strip Mesh End and Side Panels DECK SIZE 1000 x 600 mm 1000 x 700 mm 1200 x 800 mm No. OF PANELS WEIGHT REF PRICE WEIGHT REF PRICE WEIGHT REF PRICE Single End 30 TC601M £322.26 32 TC701M £325.94 37 TC801M £348.47 Double End 36 TC602M £409.17 38 TC702M £424.06 44 TC802M £457.67 3 Sided 39 TC603M £460.86 41 TC703M £475.68 48 TC803M £512.77 4 Sided 42 TC604M £485.91 44 TC704M £522.12 52 TC804M £578.97 Please allow 12-14 working weeks for delivery.
