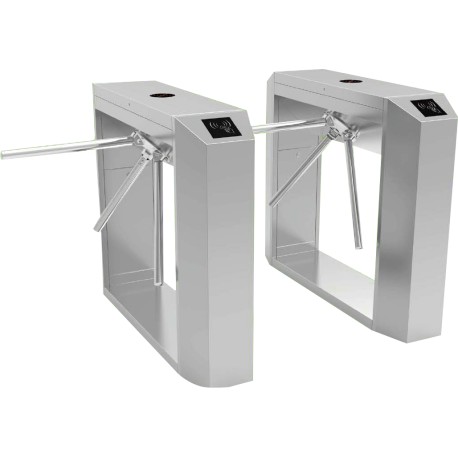

Description ZKTeco TS200 Description TS200 Tripod Turnstile TS200 is a single-lane tripod turnstile series designed for smooth and silent operation and draws very little power. It’s made of stainless steel which makes TS200 highly durable. TS200 tripod arms are normally held in a locked position, thus denying access to the secured side. Upon TS200 reader (RFID and/or fingerprint) positively recognizing a user’s valid access card or fingerprint, its tripod arms unlock, thus allowing users passage to the secured side. During emergencies and power outages the tripod arms completely collapse, thereby ensuring users FAST unencumbered exit to safety. Parameter Power requirements AC 110V/220V, 50/60Hz Power consumption Starting 73W Standby 20W Unlock 63W Working temperature -28 °C – 60 °C Working humidity 5%-80% Working environment Indoor/Outdoor(if sheltered) Speed of throughput RFID Maximum 30/minute Fingerprint Maximum 25/minute Lane width(mm) 505 Footprint(mm*mm) 785*1200 Dimension(mm) L=1200, W=280, H=980 Dimension with packing(mm) L=1275, W=370, H=1067 Net weight(kg) 46 Weight with packing(kg) 54 LED indicator Y Cabinet material SUS304 Stainless Steel Lid material SUS304 Stainless Steel Barrier material SUS304 Stainless Steel Barrier movement Rotating Emergency mode Y Security level Medium MCBF 3 million Options/Accessories Counter, SUS316 Cabinet and Lid, Remote Control
