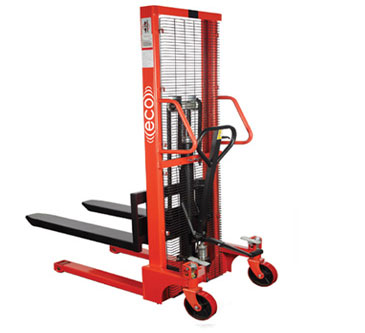

ECO “EMS22NFF” Fixed Fork Manual Hydraulic Stacker

OverviewMobile’s Manual Hydraulic Stackers provide users with a safe and efficient means of lifting and stacking pallets and other material goods. Each Manual Hydraulic Stacker is designed to lift and transport pallets and is ideal for unloading trucks in facilities without loading docks.Specifications• Capacity: 2,200 lbs / 3,300 lbs (63″ Lift Height Only) • Min. Fork Height: 3.3″ • Max. Fork Height: 63″ / 63″ / 98″ / 118″ (Available in 27″ fork width only) • Lowered Mast Height: 78″ / 78″ / 71.85″ / 82″• Raised Mast Height: 78″ / 78″ / 119.68″ • Fork Length: 36″ OR 45″ (900mm / 1150mm) • Overall Fork Width: 21.65″ OR 27″ (550mm / 690mm) • Base Legs I.D.: 11.4″/290mm – 14.4″/365mm (27″ Fork Width) • Base Legs O.D.: 19.3″/490mm – 24.6″/625mm (27″ Fork Width)• Base Legs Length.: 31.5″/800mm (21.65″ Fork Width) • Load Rollers Dia.: 2.9″ • Steer Caster Dia.: 7″ • Weight: 484lbs (220Kg) / 572lbs (260Kg) / 660lbs (300Kg)• Heavy Duty Steel Construction • High-Quality Powder Coat Paint Finish • Hand or Foot Pump Operation • Mechanical Parking Brake • Lightweight/Compact for easy manoeuvrability
