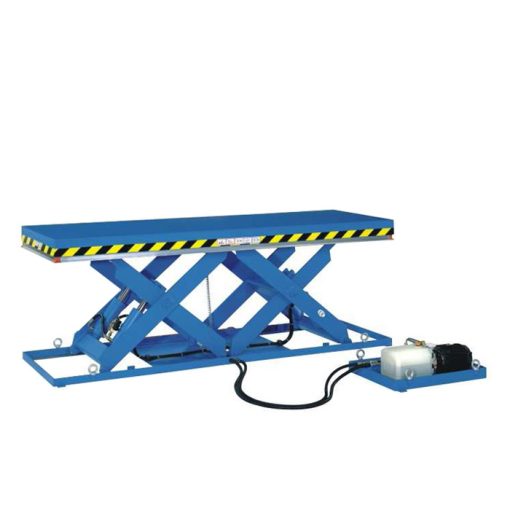

3000kg Tandem Static Scissor Lift Table LiftMate static lift tables with tandem scissor, Eurolift ELTs, deliver optimum function for long products. Features the same basic equipment as the ELS and ELD models. The only difference is the horizontally positioned tandem scissor unit. Technical Specifications: CAPACITY PLATFORM L x W (mm) SUB-FRAME L x W (mm) CLOSED HEIGHT RAISED HEIGHT LIFTING TIME APPROX. SEC POWER (KW) APPROX WEIGHT MODEL 3000 kg 2500 x 800 2500 x 750 200 mm 1000 mm 22 2.9* 800 kg ELT 3-8-15 3000 kg 3000 x 800 3000 x 750 230 mm 1230 mm 35 2.9* 1050 kg ELT 3-10-16 3000 kg 4000 x 1000 4000 x 900 280 mm 1580 mm 38 4.4* 1500 kg ELT 3-13-17 3000 kg 5000 x 1000 5000 x 900 300 mm 1900 mm 50 4.4* 1700 kg ELT 3-16-20 * External hydraulic drive unit 2m from Lifting Table. Features: Operating voltage 400 V Control voltage 230 V Dead man’s control unit with manual push button control Compact hydraulic unit (10% power-on time) Tabletop made of smooth sheet metal Sub-frame made of angle section with securing brackets (not self-supporting) Platform as a fixed part of the upper frame Differential cylinder Running rollers, fixed-bearing, scissor and cylinder bolts easy to exchange Safety rail Maintenance-free roller bearing Lead time for these tables is usually 6-8 working weeks, if your order is time-sensitive, please contact us.
