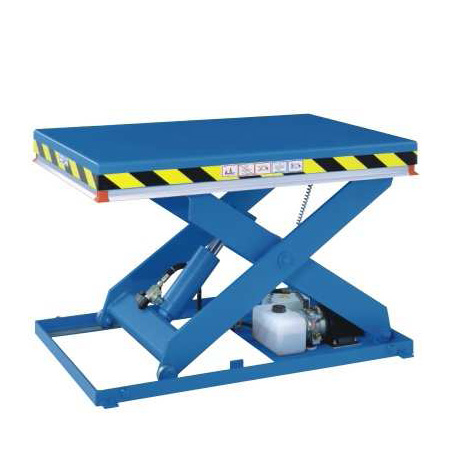

500kg Single Static Scissor Lift Table Technical Specifications: CAPACITY PLATFORM L x W (mm) SUB-FRAME L x W (mm) CLOSED HEIGHT RAISED HEIGHT LIFTING TIME APPROX. SEC POWER (KW) APPROX WEIGHT MODEL 500 kg 800 x 600 800 x 580 170 mm 670 mm 8 0.8 180 kg ELS 0.5-5-01 500 kg 800 x 800 800 x 580 170 mm 670 mm 8 0.8 190 kg ELS 0.5-5-02 500 kg 1000 x 600 800 x 580 170 mm 670 mm 8 0.8 190 kg ELS 0.5-5-03 500 kg 1000 x 800 800 x 580 170 mm 670 mm 8 0.8 200 kg ELS 0.5-5-04 500 kg 1250 x 800 1250 x 750 170 mm 970 mm 14 0.8 260 kg ELS 0.5-8-1 500 kg 1250 x 1000 1250 x 750 170 mm 970 mm 14 0.8 270 kg ELS 0.5-8-2 500 kg 1400 x 800 1250 x 750 170 mm 970 mm 14 0.8 270 kg ELS 0.5-8-3 500 kg 1400 x 1000 1250 x 750 170 mm 970 mm 14 0.8 280 kg ELS 0.5-8-4 500 kg 1500 x 800 1500 x 750 200 mm 1200 mm 16 1.1 300 kg ELS 0.5-10-5 500 kg 1500 x 1000 1500 x 750 200 mm 1200 mm 16 1.1 320 kg ELS 0.5-10-6 500 kg 1700 x 800 1500 x 750 200 mm 1200 mm 16 1.1 320 kg ELS 0.5-10-7 500 kg 1700 x 1000 1500 x 750 200 mm 1200 mm 16 1.1 330 kg ELS 0.5-10-8 500 kg 2000 x 1000 2000 x 900 230 mm 1530 mm 22 1.1 450 kg ELS 0.5-13-9 500 kg 2000 x 1250 2000 x 900 230 mm 1530 mm 22 1.1 470 kg ELS 0.5-13-10 500 kg 2300 x 1000 2000 x 900 230 mm 1530 mm 22 1.1 470 kg ELS 0.5-13-11 500 kg 2300 x 1250 2000 x 900 230 mm 1530 mm 22 1.1 490 kg ELS 0.5-13-12 Features: Operating voltage 400 V Control voltage 230 V Dead man’s control unit with manual push button control Compact hydraulic unit (10% power-on time) Tabletop made of smooth sheet metal Sub-frame made of angle section with securing brackets (not self-supporting) Platform as a fixed part of the upper frame Differential cylinder Running rollers, fixed-bearing, scissor and cylinder bolts easy to exchange Safety rail Maintenance-free roller bearing Lead time for these tables is usually 6-8 working weeks, if your order is time-sensitive, please contact us.
