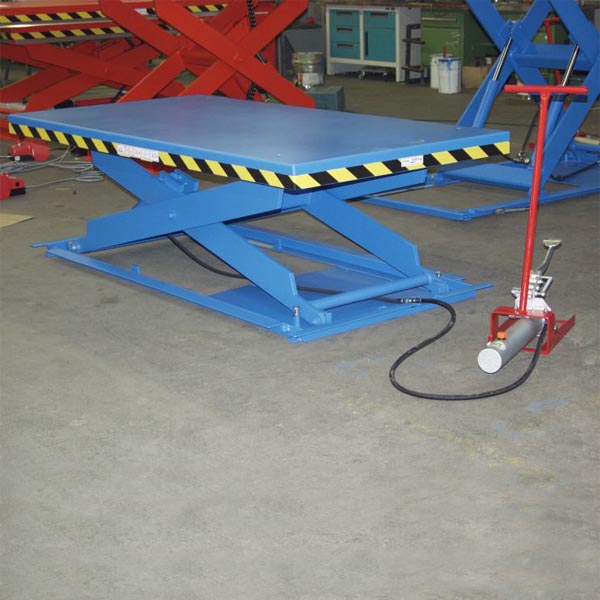

Manual Static Scissor Lift Table Technical Specifications: CAPACITY PLATFORM L x W (mm) SUB-FRAME L x W (mm) CLOSED HEIGHT RAISED HEIGHT STROKE PER PEDAL PUMP APPROX WEIGHT MODEL 500 kg 800 x 600 800 x 580 290 mm 790 mm 15 mm 180 kg ELS 0.5-5-01FP 500 kg 800 x 800 800 x 580 290 mm 790 mm 15 mm 190 kg ELS 0.5-5-02FP 500 kg 1000 x 600 800 x 580 290 mm 790 mm 15 mm 190 kg ELS 0.5-5-03FP 500 kg 1000 x 800 800 x 580 290 mm 790 mm 15 mm 200 kg ELS 0.5-5-04FP 500 kg 1250 x 800 1250 x 750 290 mm 1090 mm 15 mm 260 kg ELS 0.5-8-1FP 500 kg 1250 x 1000 1250 x 750 290 mm 1090 mm 15 mm 270 kg ELS 0.5-8-2FP 500 kg 1400 x 800 1250 x 750 290 mm 1090 mm 15 mm 270 kg ELS 0.5-8-3FP 500 kg 1400 x 1000 1250 x 750 290 mm 1090 mm 15 mm 280 kg ELS 0.5-8-4FP 500 kg 1500 x 800 1500 x 750 320 mm 1320 mm 12 mm 300 kg ELS 0.5-10-5FP 500 kg 1500 x 1000 1500 x 750 320 mm 1320 mm 12 mm 320 kg ELS 0.5-10-6FP 500 kg 1700 x 800 1500 x 750 320 mm 1320 mm 12 mm 320 kg ELS 0.5-10-7FP 500 kg 1700 x 1000 1500 x 750 320 mm 1320 mm 12 mm 330 kg ELS 0.5-10-8FP 500 kg 2000 x 1000 2000 x 900 350 mm 1650 mm 10 mm 450 kg ELS 0.5-13-9FP 500 kg 2000 x 1250 2000 x 900 350 mm 1650 mm 10 mm 470 kg ELS 0.5-13-10FP 500 kg 2300 x 1000 2000 x 900 350 mm 1650 mm 10 mm 470 kg ELS 0.5-13-11FP 500 kg 2300 x 1250 2000 x 900 350 mm 1650 mm 10 mm 490 kg ELS 0.5-13-12FP All lift tables with foot pump without safety board. Features: Tabletop made of smooth sheet metal Sub-frame made of angle section with securing brackets (not self-supporting) Platform as a fixed part of the upper frame Running rollers, fixed-bearing, scissor and cylinder bolts easy to exchange Maintenance-free roller bearing Lead time for these tables is usually 6-8 working weeks, if your order is time-sensitive, please contact us.
