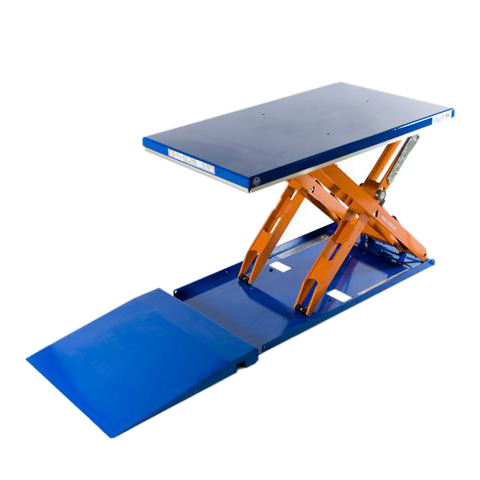

Low Profile Scissor Table with Ramp Trap prevention touch sensitive trip bars under the perimeter of the lift platform Hydraulic hose break protection valves, to prevent uncontrolled platform descent Armoured hoses to provide hose damage protection Overload protection to ensure the specified maximum capacity only is lifted Low voltage 24v control system to prevent injury Water & dust resistant electrical and hydraulic systems – IP54 Micro-processor controlled for the best reliability Mechanical props for safe & secure maintenance Chromed, honed, air tested hydraulic cylinders complete with high pressure seals Tested to 30% overload Sealed for life, maintenance free bearings Scissor arms constructed using steel profiles with torsion bars at points of maximum stress Proven designs with over 100,000 lifts in operation Solid steel pivot blocks, strength & stability Technical Specifications: Model LiTCL2000B LiTCL2000GB Capacity 2000 kg 2000 kg Platform Size (L x W) 1350 x 1000 mm 1350 x 1270 mm Closed Height 100 mm 100 mm Raised Height 920 mm 920 mm Approx. Lift Time 24 seconds to full height Power 3ph 380-500v remote unit with protective cover
