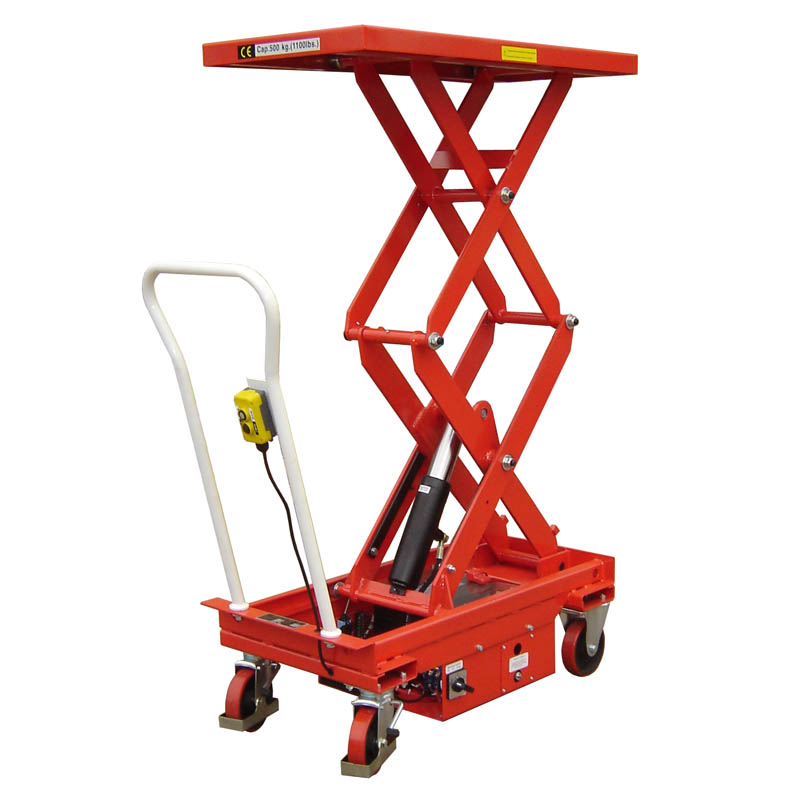

Electric Double Scissor Lift Table (ESL50D) – 500kg

Electric Double Scissor Lift Table The LiftMate mobile scissor table range has been designed, developed and built to give long service with minimum maintenance required. The 500kg electric double scissor table is highly manoeuvrable & easy to use. Battery electric powered operation 12V maintenance free battery 700W dc power pack Time to maximum height: 14 – 17 seconds Overall length including pedal: 1230mm Can be used safely at any height Fitted with two total stop brakes as standard to prevent the table from moving when loading and unloading Fitted with an overload valve Hard wearing and non-marking polyurethane tyres prevent damage to floors Swivel wheels fitted with thread guards Epoxy powder coated finish for durability Issued with a test certificate in conformance with EU standard EN 1570 Technical Specifications: Capacity: 500kg Platform Size (L x W): 1010 x 520 mm Closed Height: 435 mm Raised Height: 1618 mm Handle Height: 1180 mm Wheels Diameter: ø 150 mm Approx. Weight: 198kg Optional Attachments These attachments are designed to make the scissor lift table loading and unloading operation easier. 1. Ball Transfer Top 2. Straight Roller Track 3. Turntable Roller Track
