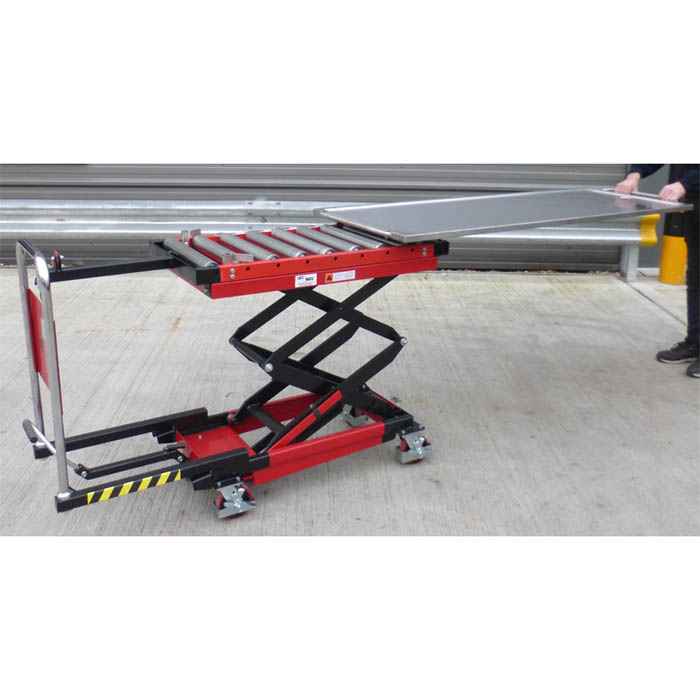

350kg Mortuary Tray Lifter (tray not included) TXL350D-RTM The LiftMate mobile scissor lift table and lifting trolley range has been designed, developed and built to give long service with minimum maintenance required. – This mortuary lifter is based on our 350kg double scissor table. – The table is fitted with a Straight Roller Track. – The load centre of gravity must be kept between back of the fixed castors (towards the handle). – The table is designed for this to be approximately half way down the tray. – The aluminium, plastic or stainless steel tray (not included) is easy to lift and transfer away from the table in any direction. – TRAYS CAN BE LOADED FROM FRIDGES OR VEHICLES IN A STRAIGHT LINE ONLY. Manual hydraulic operation (foot pump to lift / hand lever to lower) Hand operated, fully controllable lowering speed Can be used safely at any height Fitted with two total stop brakes as standard to prevent the table from moving when loading and unloading Fitted with an overload valve Hard wearing and non-marking polyurethane tyres prevent damage to floors All wheels are fitted inside braked swivel castors for maximum maneuverability Swivel wheels fitted with thread guards Epoxy powder coated finish for durability Issued with a test certificate in conformance with EU standards EN 1570 on request Electric lift version available – please contact us for more information. Technical Specifications: Capacity: 350 kg Closed Height: 450 mm Raised Height: 1720 mm Handle Height: 1300 mm Overall Length: 1550 mm Wheels Diameter: ø 125 mm Approx. Weight: 155kg
