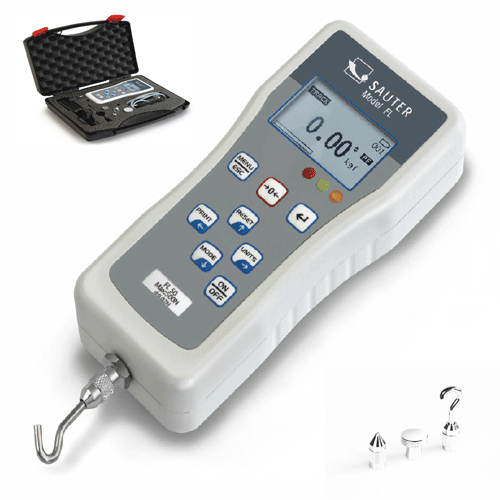

Description Universal digital force gauge with graphic-assisted display and integrated load cell · Turnable display with backlight · Peak-Hold function to capture the peak value or Track function for continuous display of measurement · Metal housing for durable use in harsh environmental conditions · Can be mounted on all SAUTER test stands up to 5 kN · Capacity display: A bar lights up to show how much of the measuring range is still available · Measuring with tolerance range (limit-setting function): Upper and lower limit adjustable, in pull and push direction. The process is supported by an visual signal · Internal memory for up to 500 measurement values · Continuous analogue output: Linear voltage signal in dependence to the load (-2 to 2V) · USB data interface, as standard · 1 Standard attachments: as shown · Selectable measuring units: N, kN, kgf, lbf · 2 Delivered in a robust carrying case Technical data: · Transfer rate to PC: approx. 25 measured values per second · Measuring precision: 0,2 % of [Max] · Overload protection: 120 % of [Max] · Overall dimensions W×D×H 175×75×30 mm · Thread: M6 · Rechargeable battery pack integrated, as standard, operating time up to 10 h without backlight, charging time approx. 8 h · Net weight approx. 0,55 kg Accessories: · Plug-In for data transfer of measuring data from the measuring instrument and transfer to a PC, e.g. in Microsoft Excel®, SAUTER AFI-2.0 · Data transfer software with graphic display SAUTER AFH FAST Force-displacement only in combination with SAUTER LD, SAUTER AFH LD Force-displacement only in combination with SAUTER LB, SAUTER AFH FD · USB cable, included in delivery, can be ordered separately, USB/PC connection cable (USB-A/USB mini), SAUTER FL-A01 · RS-232 adapter cable, SAUTER FL-A04 · Holders for object fixation and other accessories, please see www.sauter.eu or see page 40 See Datasheet for full product options
