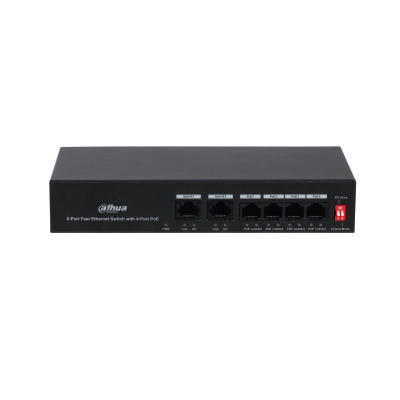

DAHUA POE Switches DH-3006-4ET-36 POE SWITCH

DAHUA POE Switches DH-3006-4ET-36 POE SWITCH Specifications Hardware Data Transmission Port 4 PoE ports with 10/100 Mbps Base-TX 2 uplink ports with 10/100Mbps Base-TX Power Supply AC100–AC240V Operating Temperature -10°C to 55°C (-14°F–131°F) Operating Humidity 10%–90% Power Consumption Idling: 0.5W Full load: 36W PoE PoE Budget Port1-4 ≤30W, whole PoE budget ≤36W PoE Standard IEEE802.3af, IEEE802.3at PoE Pin Assignment PoE: 1, 2, 4, 5(V ), 3, 6, 7, 8(V-) Performance Switching Capacity 1.2 Gbps Packet Forwarding Rate 0.89 Mpps MAC Table Size 2 K Jumbo Frame 2048 byte Communication Standard IEEE 802.3, IEEE 802.3u, IEEE 802.3X Performance ESD Air discharge: 8kV Contact discharge: 6kV Thunderproof Common mode: 6kV Differential mode: 4kV Net Weight 0.56 kg (1.23 lb) Gross Weight 1.11 kg (2.15 lb) Product Dimensions (W × L × H) 194.0 mm × 108.1 mm × 35.0 mm (7.64″ × 4.26″ × 1.38″) Packaging Dimensions (W × L × H) Packing box: 303 mm × 262 mm × 72 mm (11.92″ ×10.31″ × 2.83″) Protective box: 549 mm × 325 mm × 397 mm (21.61″ ×12.80″ × 15.63″) Package 10 devices in one package Certifications CE: EN60950; FCC
