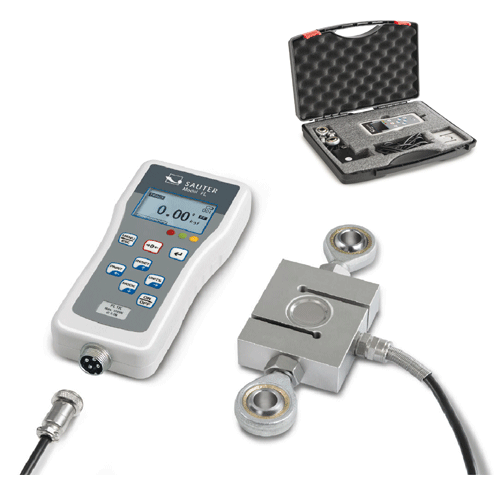

SAUTER FL-M Force Gauge

Description Digital Premium force gauge with graphics display for tensile and compressive force measurements, prepared for external load cells · 1 Premium force-measuring for connection of external load cells (load cell, tension loops and pressure plates not included with delivery) · Adjustable nominal loads: 5 N, 10 N, 25 N, 50 N, 100 N, 250 N, 500 N, 1 kN, 2,5 kN, 5 kN, 10 kN, 20 kN, 50 kN · Suitable for strain gauge sensors: up to 500 N characteristic value 1 mV/V, from 1 kN characteristic value 2 mV/V · Maximum resolution 2500 d · Peak-Hold function to capture the peak value or Track function for continuous display of measurement · Metal housing for durable use in harsh environmental conditions · Capacity display: A bar lights up to show how much of the measuring range is still available · Measuring with tolerance range (limit-setting function): Upper and lower limit adjustable, in pull and push direction. The process is supported by an visual signal · Internal data memory for up to 500 values · Continuous analogue output: Linear voltage signal in dependence to the load (-2 to 2V) · USB data interface, as standard · Selectable measuring units: N, kN, kgf, lbf, ozf · 2 Delivered in a robust carrying case Technical data: · Transfer rate to PC: approx. 25 measured values per second · Measuring precision: 0,2 % of [Max] · Overload protection: 120 % of [Max] · Overall dimensions W×D×H 175×75×30 mm · Rechargeable battery pack integrated, as standard, operating time up to 10 h without backlight, charging time approx. 8 h · Net weight approx. 1,8 kg Accessories: · Plug-In for data transfer of measuring data from the measuring instrument and transfer to a PC, e.g. in Microsoft Excel®, SAUTER AFI-2.0 · Data transfer software with graphic display of the measurement process, Force-time, SAUTER AFH FAST Force-displacement only in combination with SAUTER LD, SAUTER AFH LD Force-displacement only in combination with SAUTER LB, SAUTER AFH FD · USB cable, included in delivery, can be ordered separately, USB/PC connection cable (USB-A/USB mini), SAUTER FL-A01 · RS-232 adapter cable, SAUTER FL-A04 · Option FL-C01: Solder connector for FL TM to load cell and adjusting the device, SAUTER FL-C01 · Plug-In for data transfer of measuring data from the measuring instrument and transfer to a PC, e.g. in Microsoft Excel®, SAUTER AFI-2.0 · Data transfer software with graphic display of the measurement process, Force-time, SAUTER AFH FAST Force-displacement only in combination with SAUTER LD, SAUTER AFH LD Force-displacement only in combination with SAUTER LB, SAUTER AFH FD · USB cable, included in delivery, can be ordered separately, USB/PC connection cable (USB-A/USB mini), SAUTER FL-A01 · RS-232 adapter cable, SAUTER FL-A04 · Option FL-C01: Solder connector for FL TM to load cell and adjusting the device, SAUTER FL-C01 See Datasheet for full product options and accessories Please note: Calibration Certs must be purchased at time of order, if required.
