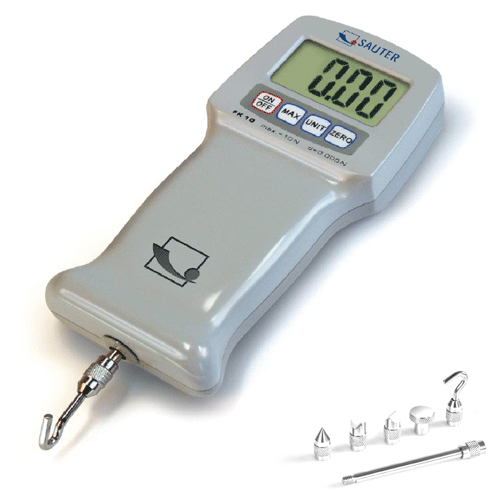

Description Robust, digital force gauge for tensile and compressive force measurements · Turnable display: automatic direction identification · Secure operability due to the ergonomic design · Peak-Hold function to capture peaks (value is “frozen” for approx. 10 seconds) or Track function mode for a continuous measurement indication · Selectable measuring units: N, lbf, kgf, ozf · Auto-Power-Off · 1 Standard attachments as shown, extension rod: 90 mm · Can be mounted on all SAUTER test stands up to 5 kN Technical data: · Measuring precision: 0,5 % of [Max] · Overload protection: 200 % of [Max] · Overall dimensions W×D×H 195×82×35 mm · Thread: M8 · Ready for use: Batteries included, 6×1.5 V AA · Net weight approx. 0,75 kg Accessories: · 2 With one of the two optional attachments for tensile strength testing, the SAUTER FK can become a tensiometer for testing the material tension characteristics of cables, threads, wires, twine etc. (up to ∅ 5 mm): Illustration shows accessories SAUTER FK-A02 · Tensiometer attachment with Safe-insert function: Pull and release to insert the running cable in between the rolls, for tensile strength testing up to 250 N, aluminium attachment, rolls can be adjusted inwards, SAUTER FK-A01 · Tensiometer kit for high-capacity tensile strength testing up to 1000 N, steel attachment and steel rolls, rolls cannot be adjusted, SAUTER FK-A02 · 1 Standard attachments as standard, set can be reordered, SAUTER AC 430 · Further accessories see www.sauter.eu and page 40 See Datasheet for full information and specification
