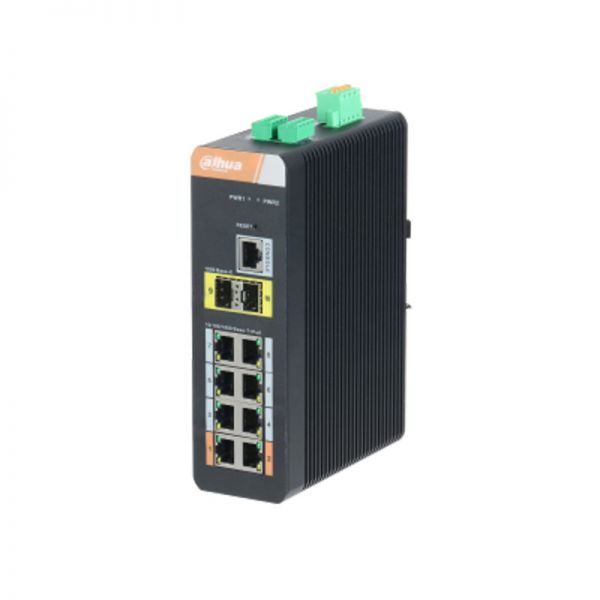

DAHUA PFS4210-8GT-DP POE Switch Technical Specification Model DH-PFS4210-8GT-DP Ethernet Port 8*10/100/1000 Base-T(PoE power supply) 2*100/1000 Base-X RS232 Serial Console 1*RS232 RS485 Port 2*RS485 (Baud rate 9600, TCP/UDP) I/O Port 1*Input, 1*Output PoE Power Consumption Each port ≤30W ,Total≤120W port 1 and port 2 supports Hi-PoE (60W) PoE Protocol IEEE802.3af (PoE), IEEE802.3at (PoE ), Hi-PoE PoE Budget ≤120W PoE PIN Assignment 1, 2(V ), 3, 6 (V-) 1, 2, 4, 5 (V ), 3, 6, 7, 8 (V-) Switching Capacity 28Gbps Packet Forwarding Rate 14.88Mpps Packet Buffer Memory 4Mb Application Humidity 10%-90% Power DC 9~57V, PoE: 48-57V Lightning Protection Common Mode 6KV Differential Mode 4KV Working Temperature ﹣40℃~75℃ Power Consumption (static) ≤6W Power Consumption (full load) ≤120W Mounting DIN-Rail Weight 1.25kg Dimension (WxDxH) 175mm x 134mm x 53mm Accessories (to be purchased separately) SFP Module PFT3950 1.25G 850nm,500m,LC, Multi-mode PFT3960 1.25G 1310/1550nm,20km,LC, Single-mode PFT3970 1.25G 1550/1310nm,20km,LC, Single-mode DIN-Rail Power Supply DRL-48V120W1AA 120W, 100VAC~240VAC-48V2.5A EDP-75-48 75W, 100VAC~240VAC-48V1.6A Service Characteristics Model PFS4210-8GT-DP System Username / password: admin/admin IP Address :192.168.1.110/24 MAC Address Table 8K NTP Support DHCP Support DHCP client/server Support DHCP snooping VLAN 802.1Q Port Aggregation Manual aggregation/LACP Port Mirroring Support many-to-one port mirroring Flow Control Support half-duplex based on back pressure type control Support full duplex based on PAUSE frame Multicast IGMP Snooping v1/v2/v3 Security Support users management Support SSH Support Https Support SNMP V1/V2/V3 Support ROMN Support ACL Support IP source guard Support ARP inspection Support 802.1x Support loop protection Spanning Tree STP/RSTP/MSTP LLDP Support Quality of Service Support QoS base on CoS/DPL/PCP/DEI Each port support 8 output queue Support port shaping Support port tag remarking Support QoS based on DSCP System Maintenance Support the configuration file upload/download Support firmware upgrade Support system logs Network Management WEB(http protocol), SNMP, CLI
