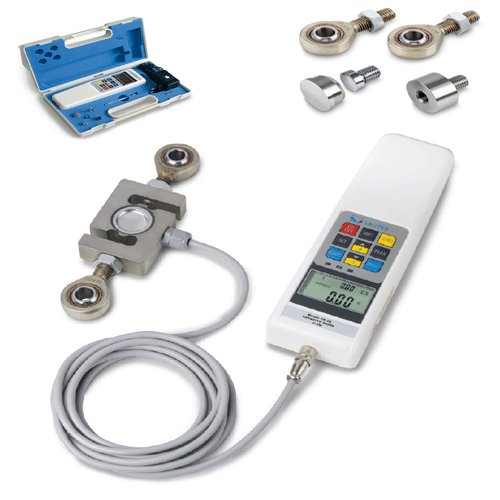

Description Universal digital force gauge for tensile and compressive force measurements with integrated load cell · Large display with backlight · 1 Can be mounted on all SAUTER test stands up to 5 kN · Data interface RS-232 as standard · 2 Standard attachments as shown, extension rod: 90 mm · 3 Delivered in a robust carrying case · Selectable measuring units: N, kgf, lbf · Peak-Hold function to capture the peak value or Track function for continuous display of measurement · Measuring with tolerance range (limit-setting function): Upper and lower limit adjustable, in pull and push direction. The process is supported by an audible and visual signal · Auto-Power-Off · Internal memory for up to 10 measurement values · Mini Statistics Kit: calculates the average result from up to 10 stored measured values, as well as min., max., n Technical data: · Transfer rate to PC: approx. 25 measured values per second · Measuring precision: 0,5 % of [Max] · Overload protection: 150 % of [Max] · Overall dimensions W×D×H 230×66×36 mm · Thread: M6 · Rechargeable battery pack integrated, as standard, operating time up to 12 h without backlight, charging time approx. 4 h · Net weight approx. 0,65 kg Accessories: · Data transfer software with graphic display of the measurement process, Force-time, SAUTER AFH FAST Force-displacement only in combination with SAUTER LD, SAUTER AFH LD Force-displacement only in combination with SAUTER LB, SAUTER AFH FD · RS-232/PC-Connection cable to connect models from the SAUTER FH range to a PC, SAUTER FH-A01 · 2 Standard attachments as standard, set can be reordered, SAUTER AC 43 · Further accessories see www.sauter.eu and page 40 See Datasheet for full product information Please note: Calibration Certificates must be purchased at time of order, if required.
