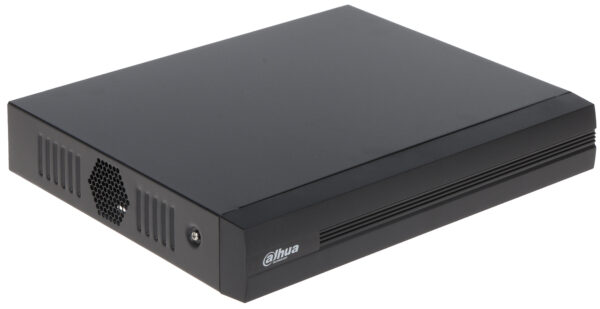

Description DAHUA NVR DH-1108-8P Built in POE 8-channel NVR Video Recorder Dahua DHI-NVR1108HS-8P-S3/H Specification Device Type video recorder Connection type wired DVR type network Video standard IP Record resolution 8 Mpx Recording speed 1 channel – 8 MP (30 fps), 4-channel – 1080P (30 fps) Number of channels 8 Number of analog cameras no Number of IP cameras 8 Video inputs no Video output no Audio inputs 1xRCA Audio outputs 1xRCA Incoming Bandwidth 80 Mbps Network Interface 1 RJ-45 порт (10/100/1000Mbps), HTTP, HTTPS, TCP/IP, IPv4, IPv6, RTSP, UDP, NTP, DHCP, DNS, P2P Alarm Inputs-Outputs no Alarm inputs no Alarm outputs no Video compression H.264, H.264 , H.265, H.265 CPU embedded processor Streaming 1 stream Recording modes constant / schedule / motion detection / alarm Maximum number of users no data Mobile applications iOS, Android Number of HDD 1 HDD type SATA up to 8 TB HDD storage capacity 8 TB RAID no PoE support yes PoE ports 8 PoE type no data Wi-Fi support no HDMI port 1 VGA output 1 USB port 2xUSB 2.0 eSata no RS-232 no RS-485 no Intended for use home, house, office, store, warehouse, production Compatibility ONVIF (profile T/profile S/profile G), CGI, SDK Operating voltage 52V DC Consumption 10 W Dimensions (WхHхD) 260x225x48 mm Body color black Body material metal Weight 840 g Temperature range -10… 40°C Producing country China Device class middle
