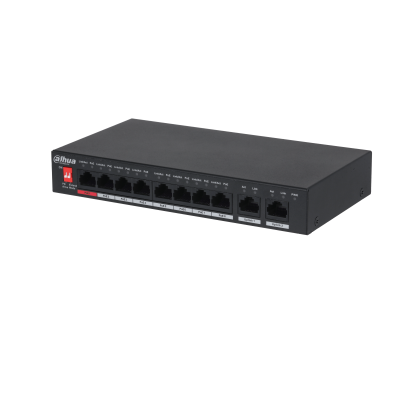

Description DAHUA 8 PORT POE DH-PFS3010-8ET-96 POE Switch 10-Port Unmanaged Desktop Switch with 8-Port PoE Hardware Data Transmission Port Port 1–8: 8 × RJ-45 10/100 Mbps (PoE) Port 9-10: 2 × RJ-45 10/100/1000 Mbps (Uplink) Power Supply 48 V – 57 V DC Operaing Temperature –10 °C to 55 °C ( 14°F to 131°F) Operating Humidity 5% – 95% (RH) Storage Temperature –20 °C to 70 °C (–4°F to 158°F) Storage Humidity 5% – 95% (RH) Power Consumption Idling: 3 W Full load: 96 W Performance Capacity 5.60 Gbps Packet Forwarding Rate 4.17 Mpps Packet Buffer Memory 4 Mbit MAC Table Size 8K Communication Standard IEEE802.3/IEEE802.3u/IEEE 802.3ab/IEEE802.3x PoE PoE Standard IEEE802.3af; IEEE802.3at; Hi-PoE; IEEE802.3bt PoE Power 96 W Power Consumption Management Yes PoE Pin Assignment 1, 2, 4, 5 (V ), 3, 6, 7, 8 (V-) Long Distance PoE 250 m long distance PoE transmission PoE Watchdog Yes General Statics Protection Air discharge: 8 kV Contact discharge: 6 kV Thunder-proof Common mode: 4 kV Differential mode: 2 kV Net Weight 0.50 kg (1.10 lb) Gross Weight 1.32 kg (2.91 lb) Product Dimensions 190 mm × 100 mm × 30 mm (7.48″ × 3.94″ × 1.18″)
