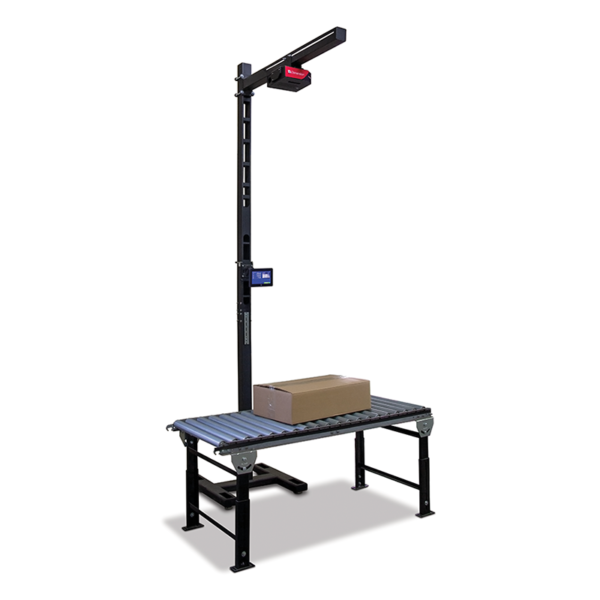

iDimension® Plus XL/OEM Series Static Dimensioning System

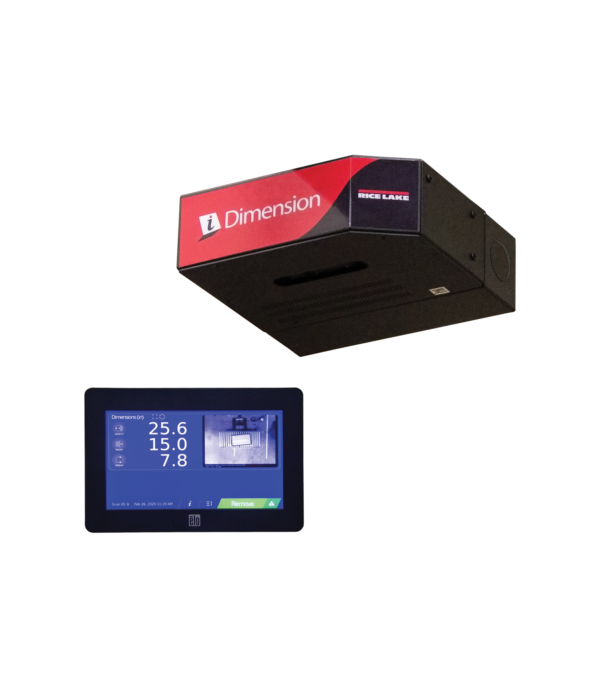

iDimension® Plus XL/OEM Series Static Dimensioning System Easy assembly with limited operator training required; up and running within 30 minutes Displays dimensions in less than 0.2 seconds Requires virtually no special alignment or special handling while placing a package to increase throughput with adjustable scan zone and area of interest Includes 7 in (178 mm) USB touchscreen monitor: Displays dimensions, live overhead image, status and weight if scale is directly attached Initial setup and configuration wizard Access to operator controls and functions Dimensions parcels at 0.2 in (5 mm) Legal for Trade accuracy Dimensions irregular-shaped packages and polybags to 0.5 in Legal for Trade accuracy using automatic recognition Legal for Trade measurements do not determine the minimum and maximum measurement capabilities available Images Included low resolution color image captures overhead photo of every item, available in .bmp or .jpg format through XML API integration High resolution color image, 2880 x 2160 pixels, available from iDimension Plus 4K Peripherals Optional powered USB Hub for use of more than one peripheral Optional USB barcode scanner with keyboard wedge emulation will manually trigger dimensioning and add barcode text data into web service API Rice Lake BenchPro shipping and postal scales Options iDimension XL mounting hardware and cable assy kit. Includes sensor mounting bracket, 25 ft US power card and two 10 ft USB Type A extension cables USB display ram mount kit Floor mount stand assembly
