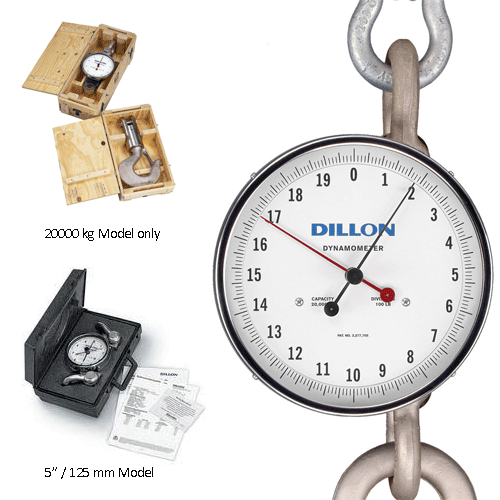

Description The Jumbo Weigher Crane Scale Is A Popular Choice Among Steel Service Centres And Other Heavy Industrial Applications Dillon AP Mechanical Crane Scales are available in capacities from 500 to 20,000 lb and 500 to 10,000 kg. Every detail of their construction was chosen for long life. Uncomplicated operation includes tare function and maximum peak load indication. AP Crane scales are made up of two parts, an AP Dynamometer and the associated crane scale hardware kit which includes the following: a swivel hook, oversized shackle assembly and a wooden shipping/storage crate. As standard a moulded plastic carrying case is supplied with 5″ / 125 mm models. No storage case supplied for the 10″ / 125 mm 1000 kg – 10000 kg models. The 10″/125 mm 20000kg model comes with a wooden storage case. Construction: Pressure bar: High-grade E4340 alloy steel or 7075-T651 aluminum Shackles: A4140 forged steel (machined from E4340 steel) Shackle pins: Machined from E4340 steel Case Housing: 5″ models are equipped with high strength composite plastic case 10″ models use cast aluminum enclosure Applications: Weighing Weighing Units: kg Power Supply: N/A
