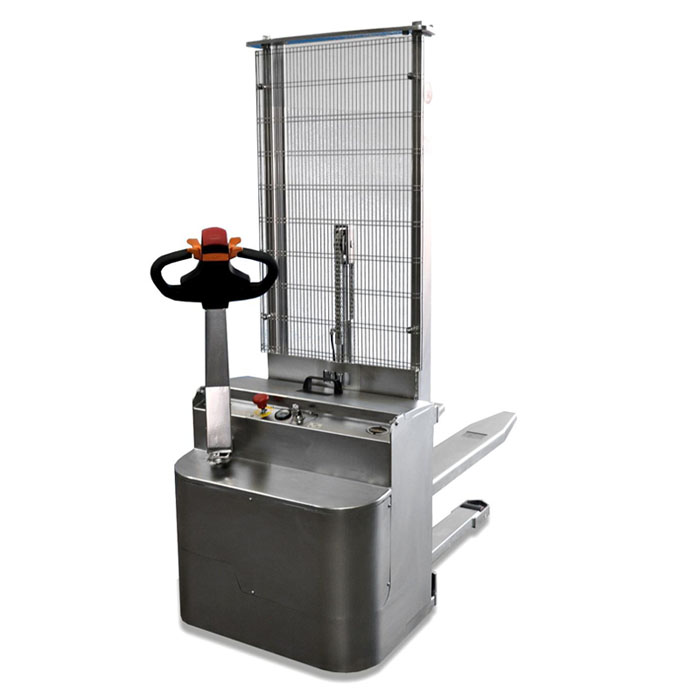

Stainless Steel Powered Stacker Aisi 304 stainless steel with electropolish treatment finish Over-ride option to drive with vertical tiller in tight spaces Up/down button on tiller Polyurethane high-traction drive wheel Polyurethane single rollers/castor wheels Automatic external battery charger (220V) 24V 160Ah lead/acid battery in stainless steel battery box, with automatic refill Technical Specifications: Features 1.1 Manufacturer LiftMate 1.2 Model Stark-IX-10-160 1.3 Drive Electric 1.4 Operator type: pedestrian, stand-on Pedestrian 1.5 Rated load capacity Qt 1.0 1.6 Load centre mm 600 1.8 Distance between the centre of the front and the back of the forks mm 700 1.9 Wheelbase mm 1,211 Weight 2.1 Truck weight incl. Battery (see line 6.5) kg 620 2.2 Axle loading, laden, driven end / load end kg 1,104 / 516 2.3 Axle loading, unladen, driven end / load end kg 187 / 433 Wheels and Rollers 3.1 Tyres, drive end / load end (PU=Polyurethane, V=Vulkollan) PU/V 3.2 Wheels size, drive end mm 230×75 3.3 Wheels size, load end mm 82×90 3.4 Support castors (dimensions) mm 125×50 3.5 Number of wheels, drive end / load end (x=powered) x1/1/2 3.6 Track width, drive end mm 538 3.7 Track width, load end mm 380 Basic dimensions 4.2 Mast, lowered height mm 2,045 4.3 Free lift height mm 1,515 4.4 Forks, lift height mm 1,515 4.5 Mast, extended height mm 2,045 4.9 Height of tiller in driving position, min / max mm 920 / 1,290 4.15 Ground clearance, forks lowered mm 85 4.19 Overall width mm 1,814 4.20 Length incl. Fork backs mm 664 4.21 Overall width mm 800 4.22 Fork dimensions mm 60/180/1,150 4.25 Overall fork width mm 560 4.32 Ground clearance, centre of wheelbase mm 30 4.34 Working aisle width with 800×1,200 pallet lengthways mm 2,310 4.35 Turning radius mm 1,470 Performance 5.1 Travel speed, laden/unladen km/h 6.0 / 6.0 5.2 Fork speed, laden/unladen m/s 0.13 / 0.22 5.3 Lowering speed, laden/unladen m/s 0.20 / 0.10 5.8 Max. gradeability, laden/unladen % 8 / 15 5.10 Service brake Electromagnetic Electric 6.1 Drive motor, rating at S2 = 60 min kW 1.2 6.2 Pump motor, rating at S3 = 10% kW 2.2 6.4 battery voltage, rated capacity K5 V/Ah 24 / 160 6.5 battery weight kg 165 Other 8.1 Electric Drive Control AC controller 8.4 Sound level at driver’s ear (ref. EN 12053) dB (A) < 70
