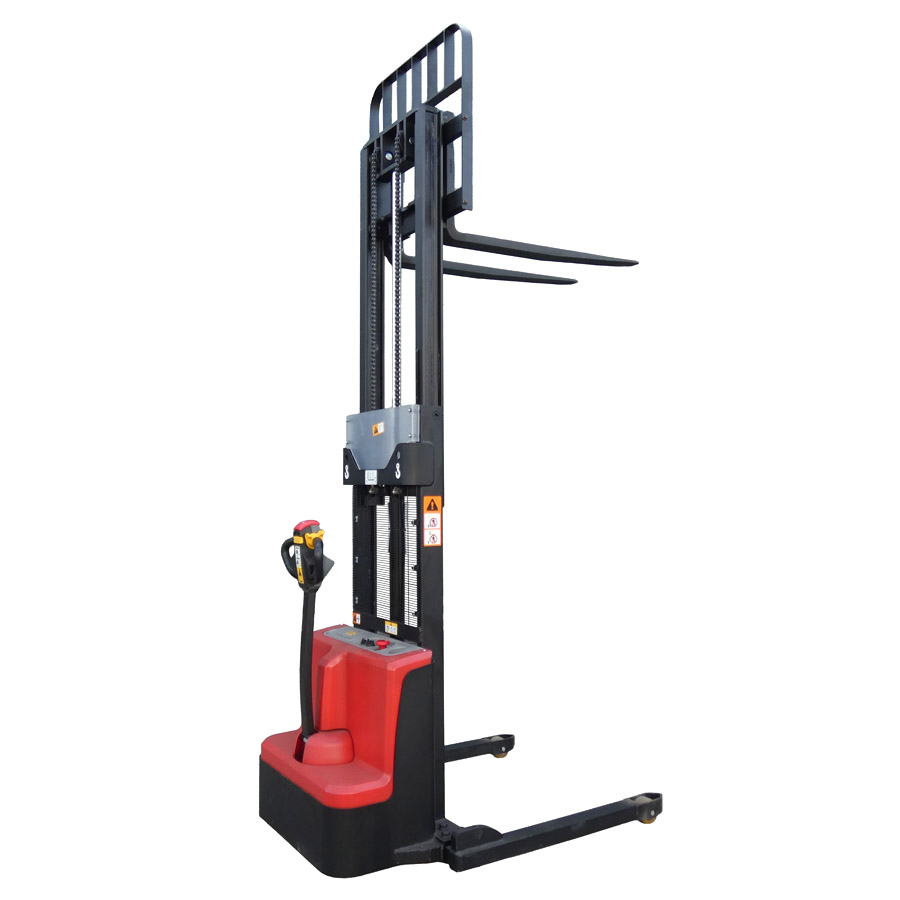

Fully Powered Electric Straddle Stackers The LiftMate LESS15 fully powered straddle stackers are lightweight, compact, powerful and reliable Designed with adjustable straddle legs Ideal for handling imperial and CHEP pallets and similar closed bottom pallets and cages Fitted with adjustable forged forks for loading special and low profile pallets Both drive and lift movement are operated by buttons on an ergonomically designed handle Variable Speed Control of lifting and lowering ensures precision control and exact pallet placement These stackers are ideal for small warehouses and factories The LESS15 fully powered straddle stackers are fitted with 2 powerful 12V/71Ah batteries On board charger which can be connected to standard mains 230V/13A 3-pin socket 240V charger – standard, included. Optional 110V charger available Technical Specifications: Model LESS 15.20 LESS 15.25 LESS 15.35 Capacity 1500kg Load Centre 600 mm Max. Lift Height 2000 mm 2500 mm 3500 mm Fork Length 1150 mm Width over Forks Adjustable 200 – 795 mm Overall Length 1828 mm Overall Width Adjustable: 1150, 1290, 1430 mm* Straddle Gap Adjustable: 970, 1110, 1250 mm Overall Closed Height 1520 mm 1770 mm 2270 mm Turning Radius 1455 mm Mast Type Double Battery 12V / 71Ah x 2 Wheels Polyurethane Wheels Diameter ø 210 / 100 mm * The Overall Width is based on the adjustable straddle gap choice.
