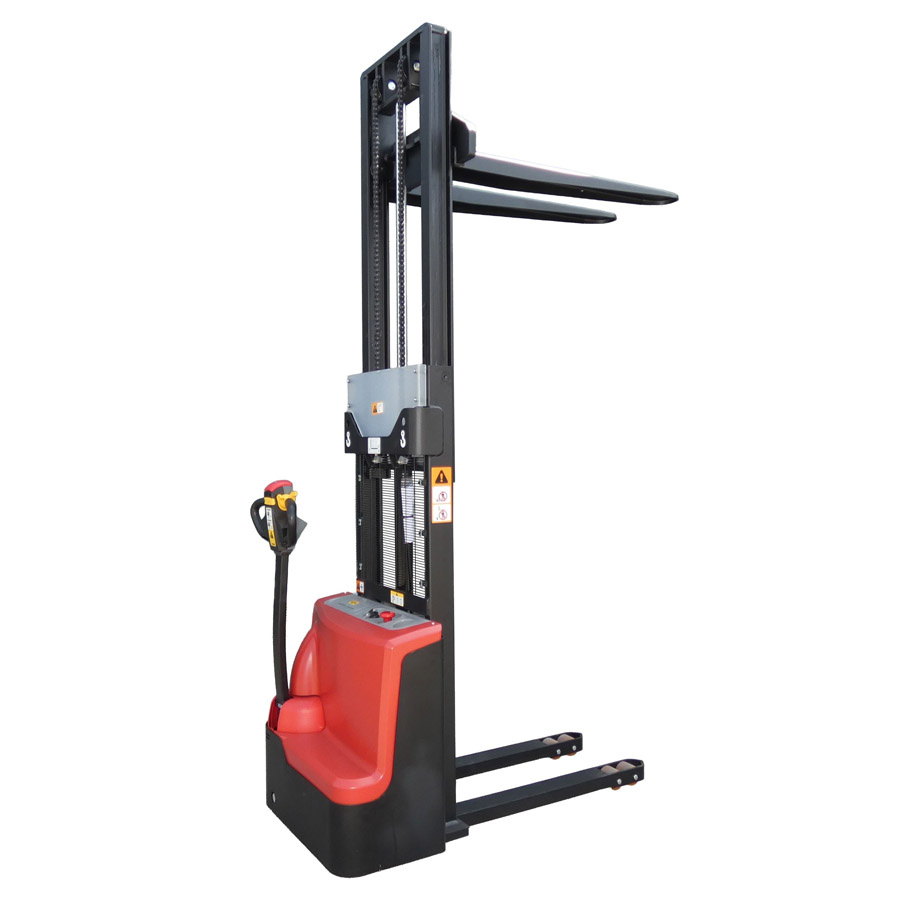

Fully Powered Electric Stackers The LiftMate LES15 fully powered stackers are lightweight, compact, powerful and reliable Both drive and lift movement are operated by buttons on an ergonomically designed handle Fitted with fixed width wrapover forks and designed for handling Euro pallets and other open bottom pallets and cages Variable Speed Control of lifting and lowering ensures precision control and exact pallet placement These stackers are ideal for small warehouses and factories The LES15 fully powered stackers are fitted with 2 powerful 12V/71Ah batteries On board charger which can be connected to standard mains 230V/13A 3-pin socket 240V charger – standard, included. Optional 110V charger available Technical Specifications: Model LES 15.20 LES 15.25 LES 15.35 Capacity 1500kg Load Centre 500 mm Max. Lift Height 2000 mm 2500 mm 3500 mm Fork Length 1150 mm Width over Forks 560 mm Overall Length 1730 mm Overall Width 820 mm Overall Closed Height 1480 mm 1730 mm 2230 mm Turning Radius 1425 mm Mast Type Double Battery 12V / 71Ah x 2 Wheels Polyurethane Wheels Diameter ø 210 / 80 mm
