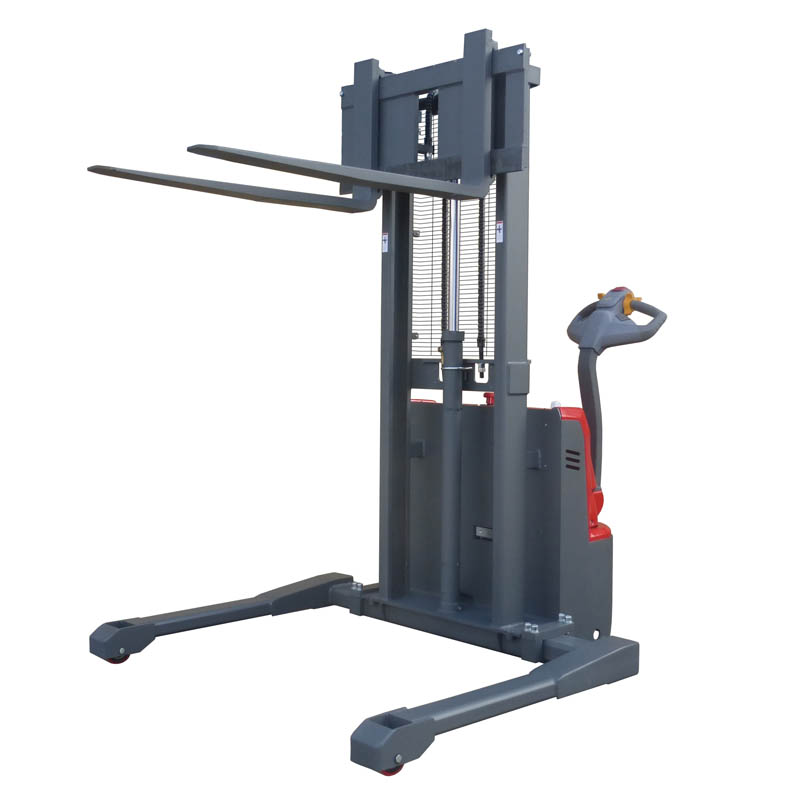

Fully Powered Straddle Stackers The LiftMate LESS10 fully powered straddle stackers are lightweight, compact, powerful and reliable Designed with adjustable straddle legs Ideal for handling imperial and CHEP pallets and similar closed bottom pallets and cages They are fitted with adjustable forged forks for loading special and even low profile pallets Both drive and lift movement are operated by buttons on an ergonomically designed handle These stackers are ideal for small warehouses and factories The LESS10 fully powered straddle stackers are fitted with 2 powerful 12V/71Ah batteries Onboard charger which can be connected to standard mains 230V/13A 3-pin socket 240V charger – standard, included. Optional 110V charger available Technical Specifications: Model LESS 10.16 LESS 10.25 LESS 10.33 Capacity 1000kg Load Centre 600 mm Max. Lift Height 1600 mm 2500 mm 3300 mm Fork Length 1150 mm Width over Forks Adjustable 200 – 800 mm Overall Length 1786 mm Overall Width Adjustable: 1410, 1240, 1140 mm* Straddle Gap Adjustable: 1255, 1090, 995 mm Overall Closed Height 2145 mm 1895 mm 2295 mm Mast Type Single Double Double Battery 12V / 71Ah x 2 Wheels Polyurethane Wheels Diameter ø 195 / 100 mm * The Overall Width is based on the adjustable straddle gap choice.
