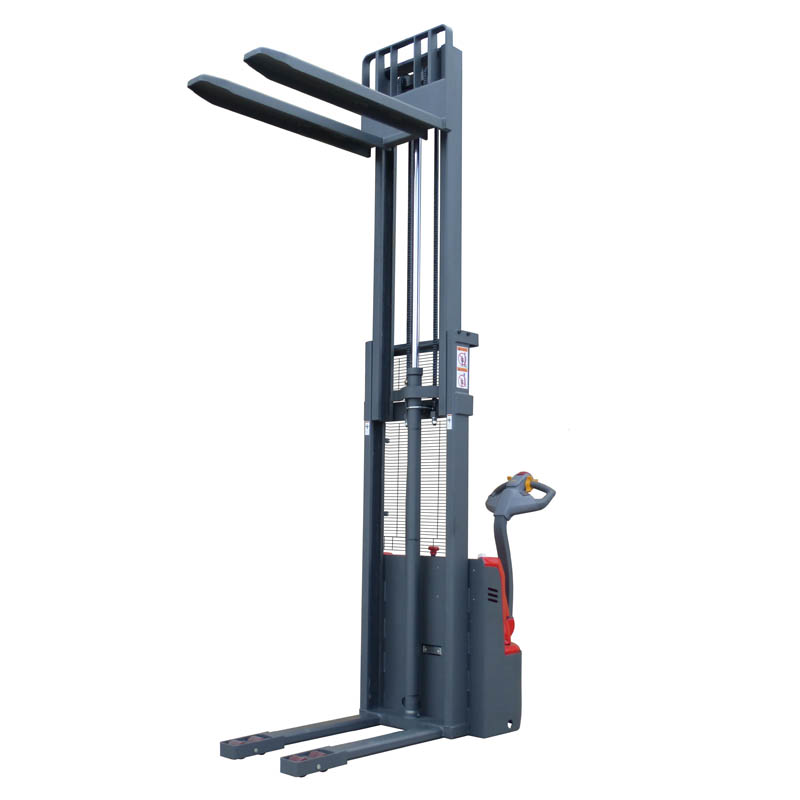

Fully Powered Stackers The LiftMate LES10 fully powered stackers are lightweight, compact, powerful and reliable Both drive and lift movement are operated by buttons on an ergonomically designed handle Fitted with fixed width wrapover forks and designed for handling Euro pallets and other open bottom pallets and cages These stackers are ideal for small warehouses and factories The LES10 fully powered stackers are fitted with 2 powerful 12V/71Ah batteries Onboard charger which can be connected to standard mains 230V/13A 3-pin socket 240V charger – standard, included. Optional 110V charger available Technical Specifications: Model LES 10.16 LES 10.25 LES 10.30 Capacity 1000kg Load Centre 600 mm Max. Lift Height 1600 mm 2500 mm 3000 mm Fork Length 1150 mm Width over Forks 560 mm Overall Length 1748 mm Overall Width 800 mm Overall Closed Height 2090 mm 1840 mm 2090 mm Mast Type Single Double Double Battery 12V / 71Ah x 2 Wheels Polyurethane Wheels Diameter ø 195 / 80 mm
