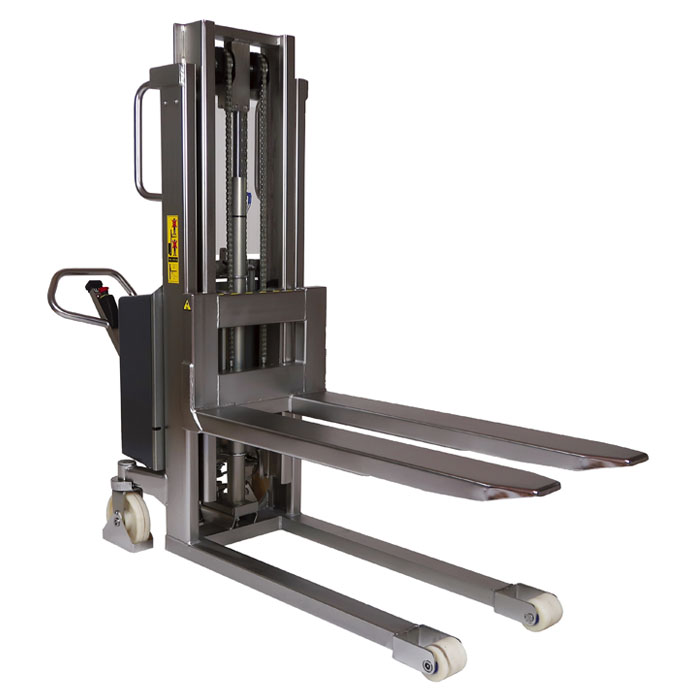

Stainless Steel Semi-Electric Stackers Ideal for environments where hygiene is essential such as meat, fish and pharmaceutical industries Ergonomic handle design Transparent and impact-resistant safety screen on the mast Acid-resistant and electric polished fork chassis (AISI 316L) Close forks Technical Specifications: Model 1000-1600-EHS-RF-SEMI 1000-2450-EHS-RF-SEMI 1000-2850-EHS-RF-SEMI Capacity 1000kg Load Centre max. 600 mm Max. Lift Height 1600 mm 2450 mm 2850 mm Fork Length 1150 mm Width over Forks 560 mm Length without Forks 500 mm Fork Width 163 mm Overall Length 1715 mm 1725 mm 1725 mm Overall width 670 mm — 930 mm Overall Closed Height 1930 mm 1730 mm 1930 mm Lowered Height 90 mm Run-in Length 1005 mm Gangway (pallet: 1200 x 800) 2200* mm Free Lift N/A 190 mm Turning Angle of the Wheels 180° Pump Motor 1.1 kW 12V Lifting Speed with/without load: 0.07 m/s Lowering Speed 0.08 m/s (irrespective of load) Approx. Weight 226kg** 292kg** 302kg** * Tests show that 1530mm is enough ** Without battery
