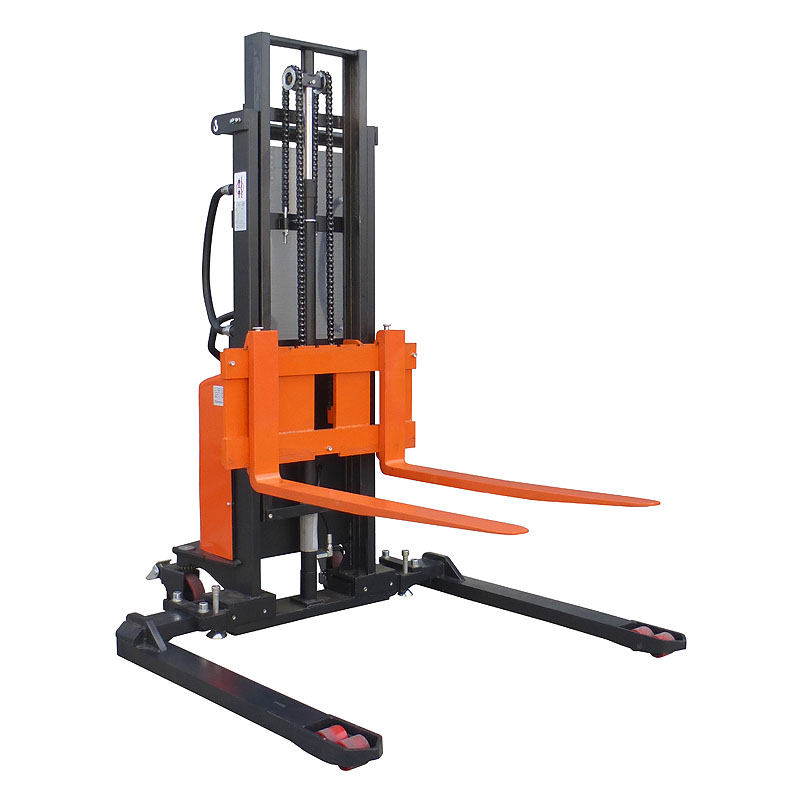

1000kg Electric Straddle Pallet Stacker (KIE1000/2500SA)

1000kg Electric Straddle Pallet Stacker The LiftMate KIE 1000kg capacity Electric Straddle Pallet Stacker is designed to lift euro pallets up to a height of 2500mm. The straddle legs allow the stacker to enter special size cargos where base legs could interfere Adjustable fork base. Complete with built-in charger Wheel fitted with brake Other stackers with attachments for the handling of drums, reels etc. are available. Technical Specifications:  Characteristics MODEL KIE1000/2500SA Drive: (electric-battery or mains, diesel, petrol, fuel gas, manual) Manual Type of operation (hand, pedestrian, standing, seated, order picker) Pedestrian Load capacity / rated load 1000 kg Load centre distance 600 mm Load distance, centre of drive axle to fork 853 mm Wheelbase 1318 mm  Weight Weight (including battery) 690 kg  Wheels Chassis Types (solid rubber, superelastic, nylon, polyurethane) Nylon / PU Type size, front 180 x 50 mm Type size, rear 80 x 93 mm Wheels, number front / rear 2 / 2 Track width, front 680 mm Track width, rear 1182-1382 mm  Basic Dimensions Lowered mast height 1854 mm Lift height 2500 mm Extended mast height 3094 mm Height of handle min. / max. 790 / 1156 mm Fork height lowered 70 mm Overall length 1810 mm Length to face of forks 660 mm Overall width 1294-1494 mm Fork dimensions 35/100/1150 mm Width over forks 200-800 mm Ground clearance, centre of wheelbase 21 mm Aisle width for pallets 1000×1200 crossways 2382 mm Aisle width for pallets 800×1200 lengthways 2252 mm Turning radius 1580 mm  Performance Lift speed, laden/unladen 90 / 140 mm/s Lowering speed, laden/unladen 120 / 100 mm/s Parking brake Manual  E-Motor Lift motor 1.5 kw Battery voltage, nominal capacity 12 / 150 V/Ah Battery weight 45 kg
