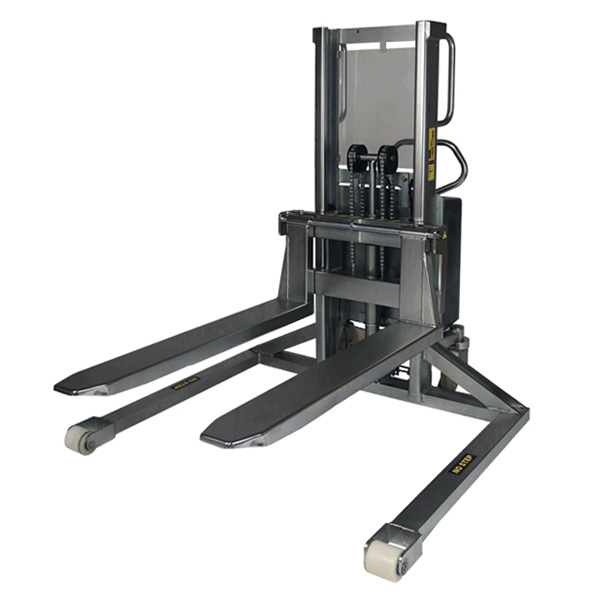

Stainless Steel Manual Straddle Stacker with Adjustable Forks Ideal for environments where hygiene is essential such as meat, fish and pharmaceutical industries Ergonomic handle design Transparent and impact-resistant safety screen on the mast AISI 316 stainless steel Technical Specifications: Model 1000-1600-RF-S-SEMI 1000-2450-RF-S-SEMI Capacity 1000kg Load Centre 600 mm Max. Lift Height 1600 mm 2450 mm Fork Length 1150 mm Width over Forks Adjustable Length without Forks 390 mm Fork Width 163 mm Overall Length 1650 mm 1660 mm Overall Width 1500 mm Overall Closed Height 1930 mm 1730 mm Lowered Height 90 mm Run-in Length 1005 mm Gangway (pallet: 1200 x 800) 2020* mm Free Lift N/A 190 mm Turning Angle of the Wheels 180° Lifting Speed (normal/quick) 17/54 mm per pump Lowering Speed 0.21 m/s (irrespective of load) * Tests show that 1450mm is enough ** Without battery
