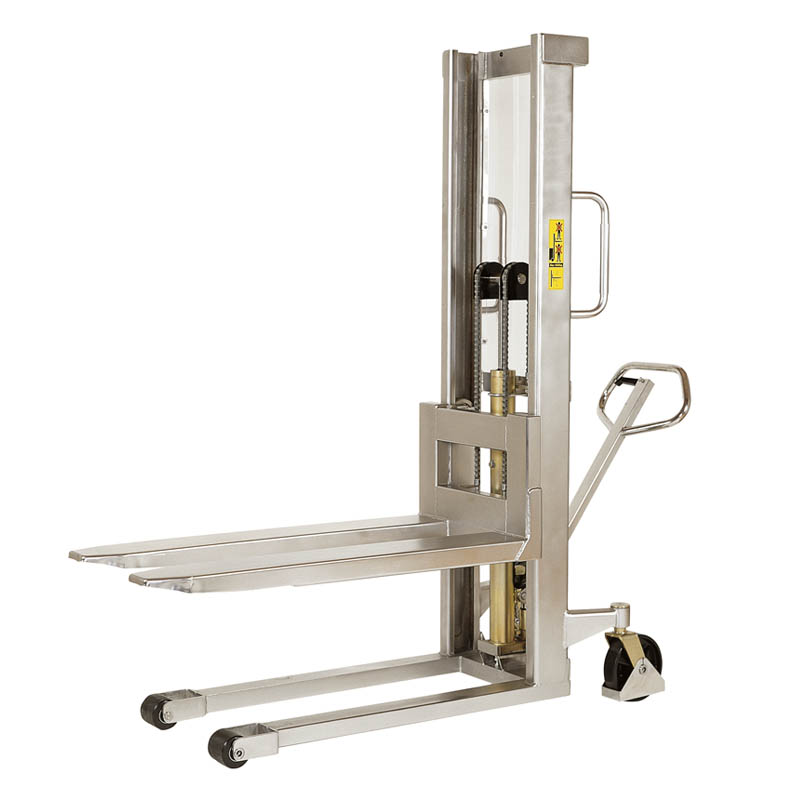

1t ATEX SS Manual Stacker 1000-1600-RF‐SEMI-EX Designed for use in areas in which an explosive atmosphere is generated occasionally due to different gases or dust Approved for operations in explosive atmospheres Manufactured in conformance with directive no. 2014/34/EC (ATEX) and EN 3691-5/EN 1127-1/EN 13463-5/EN 1755/EN 13463-1 Categorised in equipment group II Suitable for Zone 1 & Zone 2 (gas), also suitable for Zone 21 & Zone 22 (dust) Suitable for the pharmaceutical industry and the oil, gas and paint industry Two anti-static wheels of vulkollan AISI 316 stainless steel Technical Specifications: Capacity: 1000 kg Max. Lifting Height: 1600 mm Load Centre: 600 mm Length of Forks: 1150 mm Width over Forks: 540 mm Overall Height: 1930 mm Overall Width: 654 mm Length without Forks: 390 mm Overall Length: 1650 mm Lowered Height: 90 mm Run-in Length: 1005 mm Gangway (pallet: 1200 x 800): 2020 mm Turning angle of the Wheels: 180° Lifting Speed: normal/quick 17/54 mm per pump Lowering Speed: 0.21 m/s (irrespective of load) Weight without Battery: 201 kg Special fork sizes, lift heights and attachments such as booms, crane jib arm, drum clamps etc available on request. This product is manufactured to order. Please expect 8-10 working weeks delivery time. If your order is urgent, please contact us.
