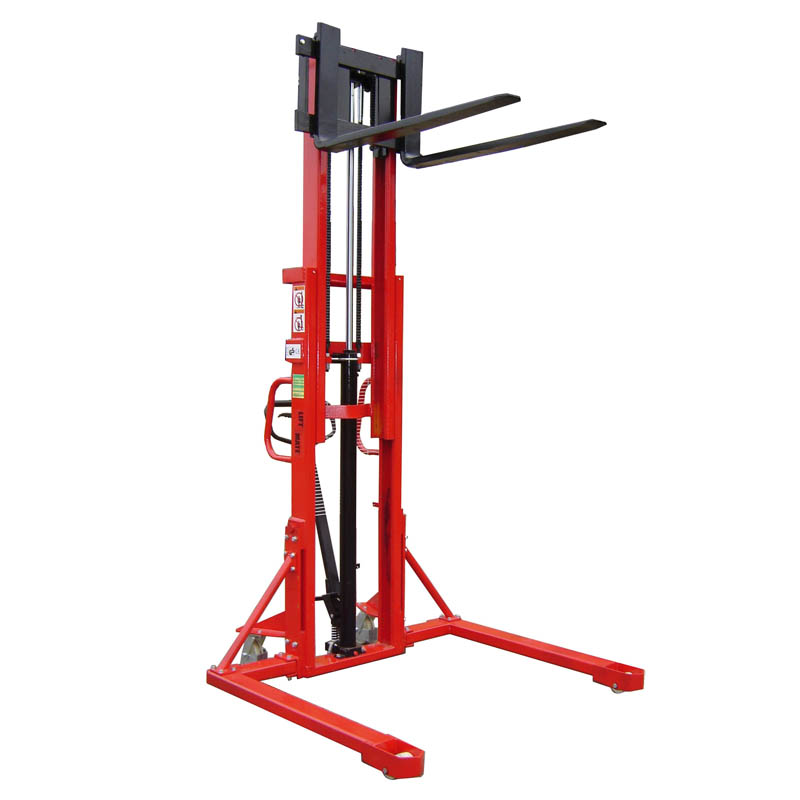

Straddle Pallet Stackers The LiftMate KI range of stackers are fitted with ergonomic pump handles and foot pumps, giving a choice of operation. The machines are sturdy, compact and constructed from robust steel profiles. The lowering speed is fully adjustable. This straddle version allows for the handling of closed bottom pallets such as the UK standard blue pallets (also called GKN or CHEP pallets). In addition to this the stacker’s straddle legs provide excellent balance making pallet handling even safer. This straddle stacker is fitted with forged forks with an adjustable width as standard. The straddle stacker comes in two lift heights: 1600mm and 2500mm Straddle gap: 1290mm This is a standard machine, but we can also offer special versions with both manual and electric lift, higher lift heights, wider or narrower straddle legs, special attachments etc. Please contact us for more information. Technical Specifications: Model KI 1000/1600 SA KI 1000/2500 SA Capacity 1000kg Load Centre 600 mm Max. Lift Height 1600 mm 2500 mm Fork Length 1060 mm Width over Forks Adjustable 240 – 940 mm Adjustable 240 – 700 mm Overall Length 1540 mm 1600 mm Overall width 1500 mm 1500 mm Overall Closed Height 2050 mm 1840 mm Lowered Fork Height 60 mm Wheels Nylon Wheels Diameter ø 150 / 80 mm Approx. Weight 336kg 340kg
