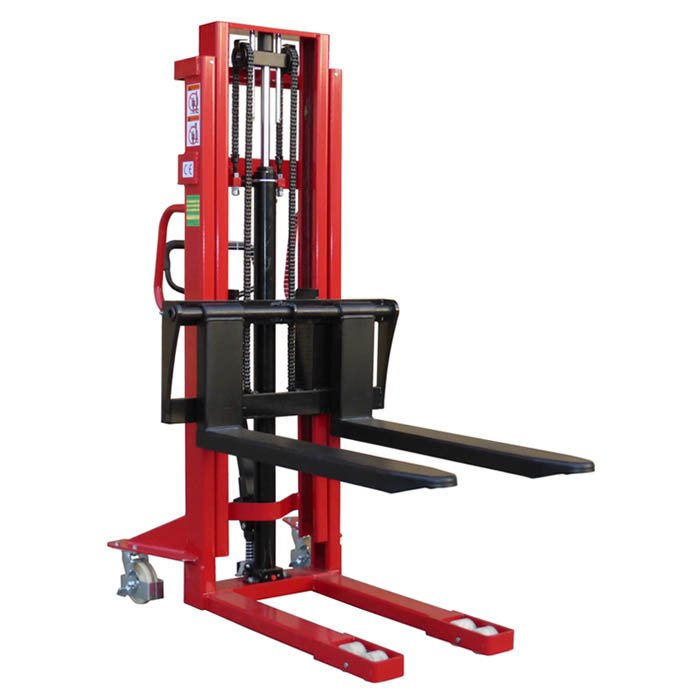

Manual Pallet Stackers with Adjustable Forks (KI1000A)

Manual Pallet Stackers with Adjustable Forks The LiftMate KI range of stackers are fitted with ergonomic pump handles and foot pumps, giving a choice of operation These stackers are sturdy, compact and constructed from robust steel profiles Stackers can be supplied with either welded or forged forks. Please choose above Our adjustable forks stackers comes in two lift heights: 1600mm and 2500mm The lowering speed is fully adjustable This is a standard machine, but we can also offer special versions with both manual and electric lift, higher lift heights, special attachments etc. Please contact us for more information Technical Specifications: Model KI 1000/1600 A KI 1000/2500 A Capacity 1000kg Load Centre 600 mm Max. Lift Height 1600 mm 2500 mm Fork Length 1060 mm Width over Forks Adjustable 310 – 940 mm Adjustable 310 – 840 mm Overall Length 1540 mm 1600 mm Overall width 1020 mm 840 mm Overall Closed Height 2090 mm 1840 mm Lowered Fork Height 85 / 140 or 120 mm* Wheels Nylon Wheels Diameter ø 150 / 80 mm Approx. Weight 250kg 279kg * Welded (wrapover) Forks: 85mm when directly over or either side of legs / 140mm when sitting on top of legs * Forged Forks: 85mm when either side of legs / 120mm when directly on top of legs
