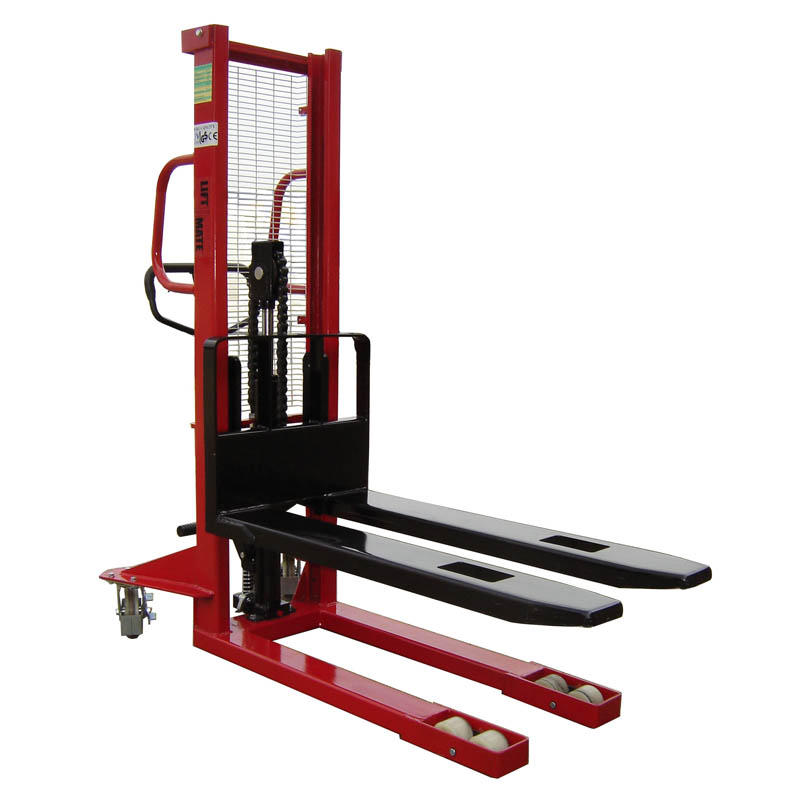

1000kg Hydraulic Pallet Stackers The LiftMate KI range of pallet stackers are fitted with ergonomic pump handles and foot pumps, giving you a choice of operation. The stackers are sturdy, compact and constructed from robust steel profiles. The lowering speed is fully adjustable. The LiftMate KI range of pallet lifters is ideal for companies who wish to lift and handle euro pallets in a warehouse environment. This stacker is available with four different lift heights – 1200mm, 1600mm, 2500mm or 3000mm. The first two models are single masted, whilst the 2500 and 3000mm models are double masted (duplex) versions, which allows for a lower overall closed height. Technical Specifications: Model (KI 1000/-) 1200 1600 2500 3000 Capacity 1000kg Load Centre 600 mm Max. Lift Height 1200mm 1600mm 2500mm 3000mm Lowered Fork Height 85 mm Fork Length 1150 mm Width over Forks 550mm 550mm 580mm 580mm Overall Length 1640 mm Overall width 740mm 740mm 840mm 840mm Overall Closed Height 1720mm 2080mm 1840mm 2080mm Mast Type Single Single Duplex Duplex Wheels Nylon ø 150 / 80 mm Approx. Weight 210kg 230kg 276kg 307kg
