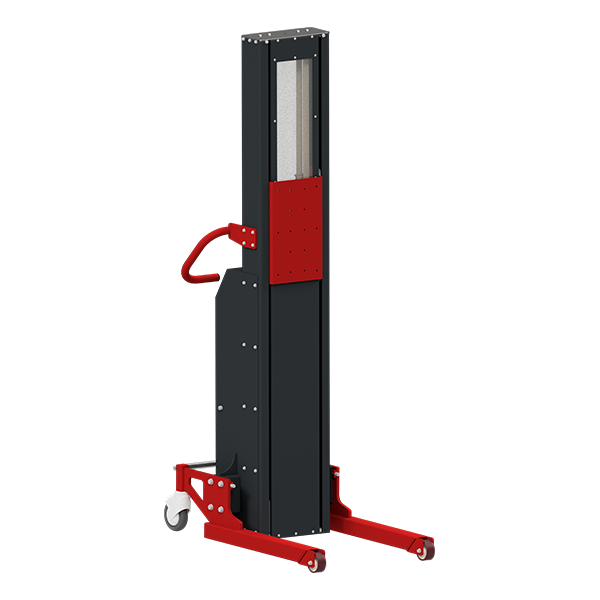

Reglift Electric Lifter 285kg Capacity The Reglift R.285 lifter is a robust and modular design stacker with a 285kg maximum load capacity Customizable with a wide range of tools allowing you to handle loads such as reels, drums, coils, bins, pallets, rolls etc. The lifter’s tool holder accommodates mechanical and electric tools with a quick change system The Reglift R.285 lifter is suitable for use in industrial production, service, automotive, logistics and other sectors The R.285 has a capacity of 285kg including the tool weight, at a distance of 400mm from the mast It is equipped with a double mast with a transparent part to facilitate the user’s view when moving It has overload protection, a safety clutch and soft start for easy handling Designed with an ergonomic handle for multiposition grip The Remote control is integrated into the handle for optimal grip Great manoeuvrability thanks to its ABS wheels mounted on ball bearings IP 44 steel finishing Technical Specifications Reference: REG-285-3121 REG-285-3131 REG-285-3141 Max. Capacity: 285 kg Max. Lift Height: 1440 mm Total Height: 2000 mm Type of Legs: Standard Length of Legs: 540 mm 690 mm 890 mm Width over Legs: 515 mm Material: Steel Belt Operating Capacity: 834 kg Belt Breaking Load: 3230 kg Command Type: Remote Control Battery Type: 1 Lithium (Tot: 48 V – 18 Ah) Total Battery Weight: 5.92 kg Charger: External – 200-240 V – 50-60Hz Number of Cycles: 130 cycles Battery Indicator: On the remote control unit Recharge Time: 2h for 100% Motor Speed: 120 mm/s Front Wheels: Double Ø 80mm – fixed Rear Wheels: Ø 160mm – with individual brake Weight: 151 kg 152 kg 153 kg
