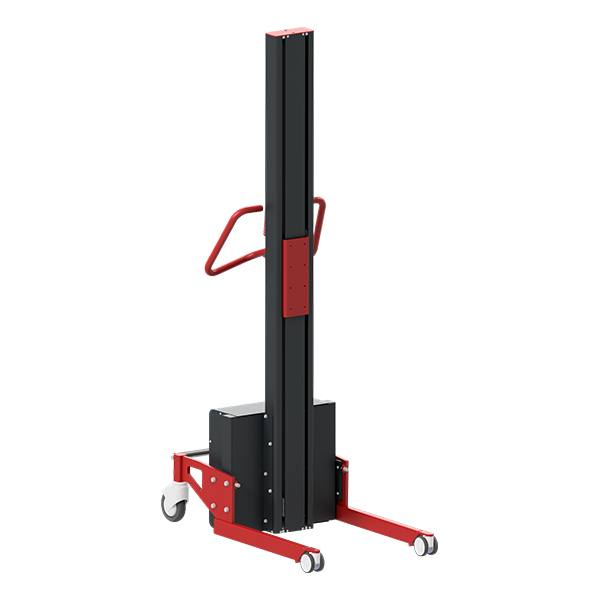

Reglift Electric Lifter 205kg Capacity The Reglift R.205 lifter is a compact, robust and modular design stacker with a 205kg maximum load capacity Customizable with a wide range of tools allowing you to handle loads such as reels, drums, coils, bins, pallets, rolls etc. The lifter’s tool holder accommodates mechanical and electric tools with a quick change system The Reglift R.205 lifter is suitable for use in industrial production, service, automotive, logistics and other sectors The R.205 has a capacity of 205kg including the tool weight, at a distance of 400mm from the mast It has overload protection, a safety clutch and soft start for easy load handling Designed with an ergonomic handle for multi-position grip The Remote control is integrated into the handle for optimal grip Great manoeuvrability thanks to its ABS wheels mounted on ball bearings 3 position braking system Choice of 3 maximum lift heights (1180, 1560 or 2000 mm) REG-205-2121 & REG-205-3121 available with optional Central legs – Contact us for more information IP 44 steel finishing Technical Specifications Reference: REG-205-2121 REG-205-3121 REG-205-4121 Max. Capacity: 205 kg 205 kg 180 kg Max. Lift Height: 1180 mm 1560 mm 2000 mm Total Height: 1560 mm 1940 mm 2390 mm Type of Legs: Standard Length of Legs: 500 mm Width over Legs: 520 mm Material: Steel Belt Operating Capacity: 539 kg Belt Breaking Load: 2090 kg Command Type: Remote Control Battery Type: 4 AGM (Tot: 24 V – 18 Ah) Total Battery Weight: 9.7 kg Charger: External – 230 V – 50-60Hz Number of Cycles: 80-150 cycles Battery Indicator: On the remote control unit Recharge Time: 15h for 100% Motor Speed: 120 mm/s Front Wheels: Double Ø 80mm – fixed Rear Wheels: Ø 150mm – with central brake Weight: 86 kg 89 kg 94 kg
