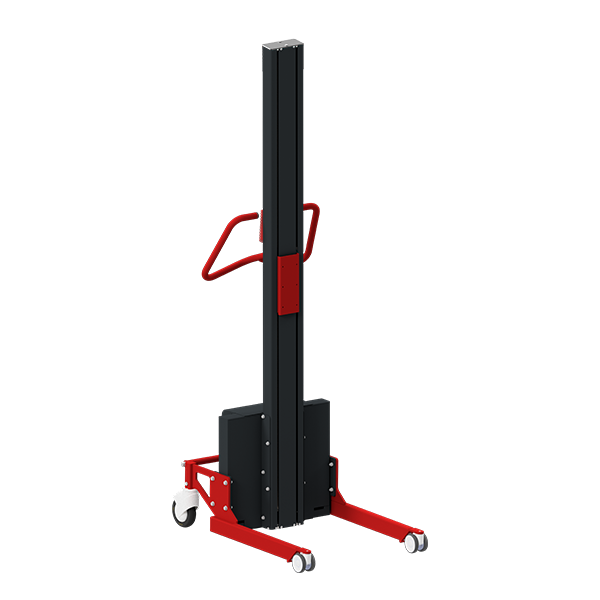

Reglift Electric Lifter 125kg Capacity The Reglift R.125 lifter is a compact, robust and modular design stacker with a 125kg maximum load capacity Customizable with a wide range of tools allowing you to handle loads such as reels, drums, coils, bins, pallets, rolls etc. The lifter’s tool holder accommodates mechanical and electric tools with a quick change system The Reglift R.125 lifter is suitable for use in industrial production, service, automotive, logistics and other sectors The R.125 has a capacity of 125kg including the tool weight, at a distance of 400mm from the mast It has overload protection, a safety clutch and soft start for easy handling Designed with an ergonomic handle for multiposition grip The Remote control is integrated into the handle for optimal grip Great manoeuvrability thanks to its ABS wheels mounted on ball bearings 3 position braking system Choice of 3 maximum lift heights (1220, 1600 or 2050 mm) REG-125-2120 & REG-125-3120 available with optional Central legs – Contact us for more information IP 44 steel finishing Technical Specifications Reference: REG-125-2120 REG-125-3120 REG-125-4120 Max. Capacity: 125 kg 125 kg 110 kg Max. Lift Height: 1220 mm 1600 mm 2050 mm Total Height: 1560 mm 1940 mm 2390 mm Type of Legs: Standard Length of Legs: 500 mm Width over Legs: 530 mm Material: Steel Belt Operating Capacity: 417 kg Belt Breaking Load: 1615 kg Command Type: Remote Control Battery Type: 2 AGM (Tot: 24 V – 9 Ah) Total Battery Weight: 4.85 kg Charger: External – 230 V – 50-60Hz Number of Cycles: 80-150 cycles Battery Indicator: On the remote control unit Recharge Time: 7.50h for 100% Motor Speed: 120 mm/s Front Wheels: Double Ø 75mm – swivel Rear Wheels: Ø 125mm – with central brake Weight: 58 kg 60 kg 63 kg
