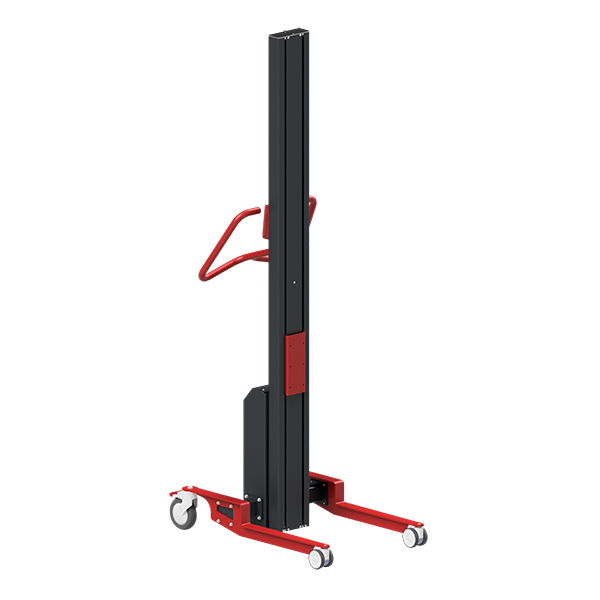

Reglift Electric Lifter 65kg Capacity The Reglift R.65 lifter is a compact, robust and modular design stacker with a 65kg maximum load capacity Customizable with a wide range of tools allowing you to handle loads such as rolls, crates, boxes etc. The lifter’s tool holder accommodates mechanical tools with a quick change system The Reglift R.65 lifter is suitable for use in the food industry, warehouses, factories, supermarkets, offices etc. The R.65 has a capacity of 65kg including the tool weight, at a distance of 400mm from the mast Great manoeuvrability thanks to its ABS wheels mounted on ball bearings Choice of 3 maximum lift heights (965, 1200 or 1600 mm) Choice of 3 Leg Types (Standard, Angle or Central)- please see Leg Type image above for further information IP 44 steel finishing Technical Specifications Reference: REG-65-1110 REG-65-2110 REG-65-3110 Max. Capacity: 65 kg 65 kg 65 kg Max. Lift Height: 965 mm 1200 mm 1600 mm Total Height: 1290 mm 1530 mm 1940 mm Type of Legs: Standard / Angle / Central Length of Legs: 430mm / 400mm / 422mm Width over Legs: 476mm / 380mm / 144mm Material: Steel Belt Operating Capacity: 417 kg Belt Breaking Load: 1615 kg Command Type: Remote Control Battery Type: 2 AGM (Tot: 24 V – 9 Ah) Total Battery Weight: 4.85 kg Charger: External – 230 V – 50-60Hz Number of Cycles: 150-250 cycles Battery Indicator: On the remote control unit Recharge Time: 7.50h for 100% Motor Speed: 120 mm/s Front Wheels: Double Ø 75mm – swivel Rear Wheels: Ø 125mm – with individual brake Weight: 37 kg 39 kg 41 kg
