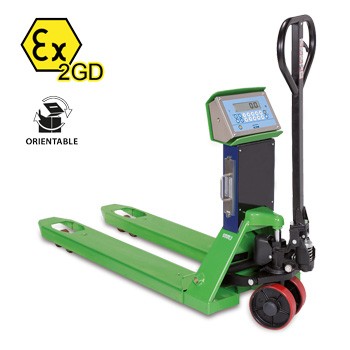

Description Robust, Functional And High Performing Pallet Truck scales. For the trade approved model click here. Pallet truck scales, with built-in electronic weighing, for dangerous areas classified as hazardous (zones 1 and 21 & 2 and 22) in accordance with Ex II 2G IIB T4 Gb X and Ex II 2D IIIC T197°C Db X The Atex certified four load cell weight detection IP68 guarantees the best accuracy in all work conditions Main Features: Maximum lifting capacity: 2500 kg Accuracy: /- 0.05% of the maximum capacity Fork dimensions 1150 x 550 x 85 mm Weighs about 125 kg Bearing structure in extra thick sheet steel and oven-fire painted interior construction Standard fitted with /-160° swivelling column head Steering wheels and double loading rollers with a poliurethane coating Atex certified, 4 stainless steel IP68 shear-beam load cells Indicator with easy to clean satin finish stainless steel case with IP68 enclosure built to withstand humid and dusty environments; large LCD display 25-mm high contrast digits which are clearly visible even in poor lighting conditions; 17-key numerical/functional membrane waterproof keyboard Calibration and Set-Up parameters configurable from keyboard Power supply through extractable battery, rechargeable in safe zone 150-hour approximate operating time Equipped with 230Vac 50 Hz battery charger to be recharged in a safe area WARNING: With ATEX weighing systems, when directly weighing light metals (such as aluminium, magnesium, titanium and their alloys), it is necessary to use the STAINLESS STEEL loading forks. Please contacts us if this is your application, or for the fully stainless steel model see TPWI. Applications: High Resolution Weighing x 10, Net/Gross or lb/kg Conversion, Weighs Accumulation, Formula Weighing, Hold, Piece Counting Weighing Units: kg, lb Power Supply: Power supply 230Vac 50 Hz battery charger. Removable ATEX battery to be recharged in the safe area.
