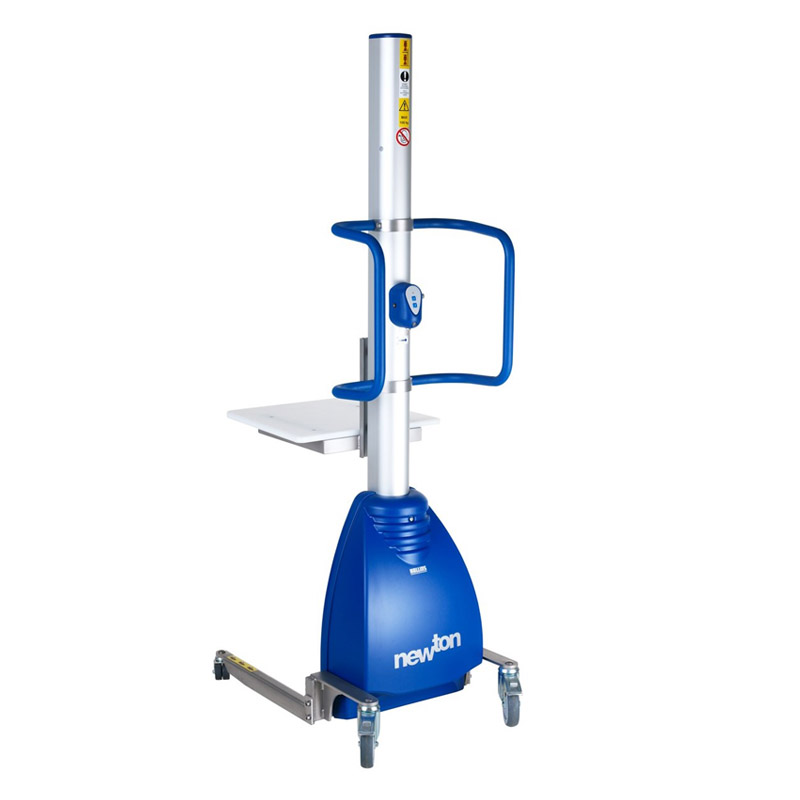

Newton Lifter 100 Robust lifter Suitable for lifting loads in tight spaces On/Off switch Battery indicator Separate battery charger Supplied with platform as standard Technical Specifications: Model LiN100-1535 LiN100-1735 LiN100-2035 Capacity 100 kg 100 kg 100 kg Max. Lift Height 1535 mm 1735 mm 2035 mm Min. Lift Height 140 mm 140 mm 140 mm Dimensions (L x W x H) 875 x 525 x 1870 mm 875 x 525 x 2070 mm 875 x 525 x 2370 mm Platform Size 485 x 460 mm 485 x 460 mm 485 x 460 mm Lifting Speed 100 mm / sec 100 mm / sec 100 mm / sec Batteries 2 x 7.5 Ah, 12V 2 x 7.5 Ah, 12V 2 x 7.5 Ah, 12V Charging Voltage 100-240 V 100-240 V 100-240 V Charger 24 V, 1 A 24 V, 1 A 24 V, 1 A Safety Class IP 41 IP 41 IP 41 Wheels Diameter ø 75 / 100 mm ø 75 / 100 mm ø 75 / 100 mm Material Rfr, Alu, ABS Rfr, Alu, ABS Rfr, Alu, ABS
