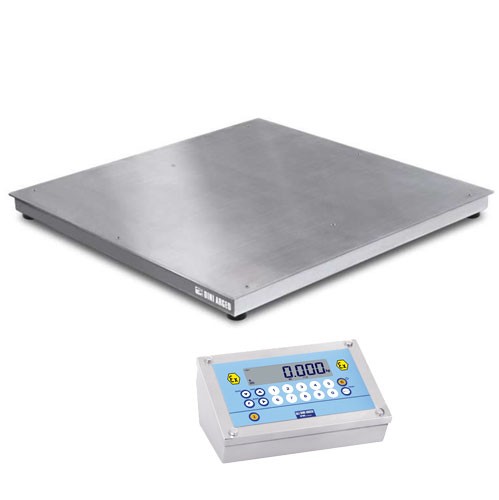

Dini Argeo ETI ATEX Zone 1/21 2/22 Platform Scale DFWATEX2GD Indicator

Description Stainless Steel Platform Scales For ATEX 1/21 Zones (Can be used in 2/22) Fully stainless steel platform scales, for specific use in ATEX hazardous areas. Provided with the ATEX declaration of conformity and the load cell certificate of conformity. Available in various base sizes, capacities and resolutions. Please see below:- Weight Indicator Features: Weight indicator for areas classified as hazardous with protection methods according to: ATEX II 2(2)G Ex ib [ib Gb] IIC T4 Gb for gases ATEX II 2(2)D Ex tb [ib Db] IIIC T197°C IP65 Db for dust Ideal for creating weighing systems, batching, and automation systems. EC-Type-Examination certificate according to Annex III (ATEX directive). CE-M approvable (OIML R-76 / EN 45501) Waterproof 17-key numerical and functional keyboard LCD display with 6 25 mm high contrast digits, clearly visible even in poor lighting conditions and with low temperatures, and with 6 LEDs for showing the active functions IP68 Satin finish stainless steel case Dimensions 264 mm x 174 mm x 115 mm Suitable for use on the table, or wall Up to 10.000e or multirange 3 x 3000e @ 0,3 µV/e in CE-M approved version for legal for trade use Up to 1.000.000 displayable divisions with internal resolution up to 3.000.000 points Up to 8 signal linearization points with DINITOOLS (3 from keypad) A/D 24-bit sigma-delta conversion, up to 200 conv./sec. autoselect Digital calibration and set-up from keyboard; Instrument management & configuration from PC with DINITOOLS Power supply through external module: with optional battery pack; or with optional power adapter connectable to mains at 230 Vac or at 24 Vdc Connection with up to 4 load cells having 350 Ohm input resistance Scale Functions: – Zeroing – Automatic Tare – Presettable Tare – ID1 and ID2 10-digit Codes – Print and data transmission commands – selectable function command – on/off switching STF-1 Stainless Steel Bracket included Platform Features: Low profile STAINLESS STEEL electronic platforms with removable loading plate. Fitted with IP68 STAINLESS STEEL load cells. Suitable for creating scales and electronic weighing systems for all types of industrial and commercial applications. Standard version is with approved load cell Fitted with 4 STAINLESS STEEL shear-beam OIML approved load cells each with 350 Ohm input resistance with protection against dust and immersion according to IP68 standards Stainless steel bearing tubular structure, with removable stainless steel plate (except for the ELCI models which have a non removable plate) and IP67 junction box housing Adjustable, stainless steel shock-proof jointed feet and level Up to 15 Vdc power supply Hermetic junction box and wiring cables with sheathing according to IP67 standards, and shielded 5m long 6-pin cable with connectors for connection to the indicator Included: EXACBPW – Armoured power cable x 5m CCATEX-1 – ATEX loadcells x 4 JB4QAI – ATEX junction box EXCB6 – ATEX certified cable platform-indicator x 5 m DCATEX2GD – Declaration of ATEX conformity of whole. Ex II 2GD IIC T4 T197°C X Applications: High Resolution Weighing x 10, Net/Gross or lb/kg Conversion, Accumulation, Formula Weighing, /- Checkweighing, Counting (Max. resolution of 1.500.000 divisions), In/Out Truck Weighing, Hold, Weighing Units: kg Power Supply: 230 Vac or 115 Vac (Please choose!)
