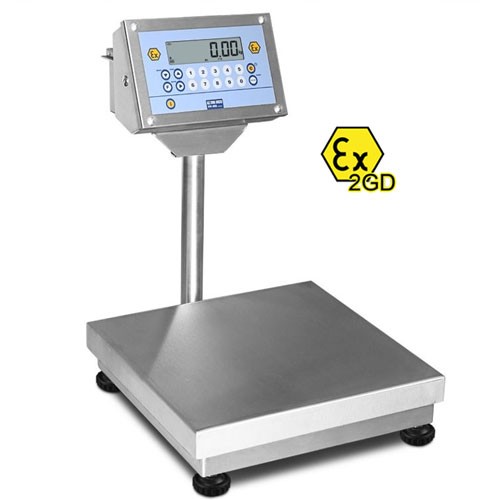

ATEX scale Dini Argeo Easy Pesa 2GD for Zones 1/21

Description ATEX scale for Zone 1, 21. (Can be used in 2, 22 Zones) The ‘Easy Pesa’ 2GD ATEX scale range is made entirely of stainless steel and are specially designed for use in ATEX hazardous areas. They have a durable rechargeable battery, making it easy to install them exactly where they’re needed without requiring a power outlet in the danger zone or ATEX-certified power cables. They come with an ATEX declaration of conformity and a load cell certificate of conformity. They offer Ex II 2G IIC T4 Gb X and Ex II 2D IIIC T197°C Db X protection. Platform Features: Approved “single point” stainless steel load cell according to OIML R60 standards with protection against dust and water splashes according to IP67 standards ATEX approved load cell with ATEX protection: ATEX II 1G Ex ia IIC T6 (Ta -20÷ 40°C) TX (Ta -20÷ 65°C) Ga ATEX II 1D Ex ta IIIC TX°C (Ta -20÷ 40°C) TX°C (Ta -20÷ 65°C) Da IP65 Structure, enclosure and loading plate made in AISI304 satin finish stainless steel Adjustable levelling feet with plastic over shoe Supplied with support column, height: – 500 mm in the “Q” models – 700 mm in the “X” models Weight Indicator Features: IP68 Weight indicator for ATEX zones with protection methods according to: ATEX II 2(2)G Ex ib [ib Gb] IIC T4 Gb for gases ATEX II 2(2)D Ex tb [ib Db] IIIC T197°C IP65 Db for dust EC-Type-Examination certificate according to Annex III (ATEX directive). CE-M approvable (OIML R-76 / EN 45501) Waterproof 17-key numerical and functional keyboard LCD display with 6 25-mm high contrast digits, clearly visible even in poor lighting conditions and with low temperatures, and with 6 LEDs for showing the active functions Up to 10.000e or multirange 3 x 3000e @ 0,3 µV/d in CE-M approved version for legal for trade use Up to 1.000.000 displayable divisions with internal resolution up to 3.000.000 points A/D 24-bit sigma-delta conversion, up to 100 conv./sec. autoselect Power supply through external battery pack with 160h operating time. An extra battery pack for continuous use (24/7) is available as option Charger included in the supply Applications: High Resolution Weighing x 10, Net/Gross or lb/kg Conversion, Weight Totalisation, Formula Weighing, /- Checkweighing, Counting (Max. resolution of 1.500.000 divisions) Weighing Units: g, kg, lb Power Supply: Power supply through external battery pack with 160h operating time EPQI2GD15B – Dini Argeo Easy Pesa 2GD 15 kg x 2g EPQI2GD30B – Dini Argeo Easy Pesa 2GD 30 kg x 5g EPQI2GD60B – Dini Argeo Easy Pesa 2GD 60 kg x 10g EPXI2GD60B – Dini Argeo Easy Pesa 2GD 60 kg x 10g EPXI2GD150B – Dini Argeo Easy Pesa 2GD 150 kg x 20g EPXI2GD300B – Dini Argeo Easy Pesa 2GD 300 kg x 50g
