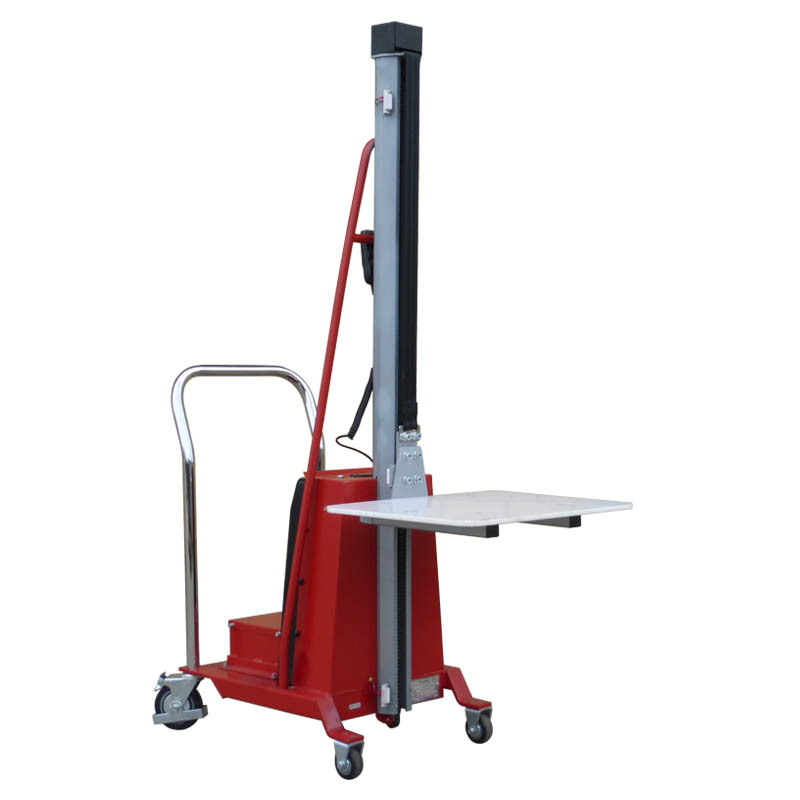

Counterbalanced Electric Lifter – E100R(B) Versatile and easy to operate Designed with a portable and adjustable hand control unit The lifter is a perfect solution for narrow aisles and confined spaces thanks to its overall size Lift/lowering system with electrical motor Maintenance free, sealed battery Electric overload protection Automatic brake system ensures a safe lowering Supplied with platform and forks as standard Non-marking castor wheels – 2 swivel wheels fitted with foot brakes and 2 fixed wheels on the legs Accessory price surcharge assumes the standard platform is not required and not supplied. If you require both the accessory and the standard platform please contact us. The Ball Transfer Unit EP01, V-Block EP03 and 200mm Raised Frame are the exceptions as they require the standard platform to work so the platform is supplied with these three accessories. Technical Specifications: Capacity: 100kg Load Centre: 235 mm Max. Lift Height: 1500 mm Lift: Electric Platform Size (L x W): 475 x 605 mm Lowered Fork Height: (Platform) 130 mm Dimensions (L x W x H): 1150 x 605 x 1820 mm Wheels: Polyurethane Wheels Diameter: ø 125 / 75 mm Battery: 24V / 12Ah Approx. Weight: 135kg The lifter comes with a platform and forks as standard, but other attachments are available (see example photos). Please contact us if you would like the mini-stacker fitted with another type of attachment.
