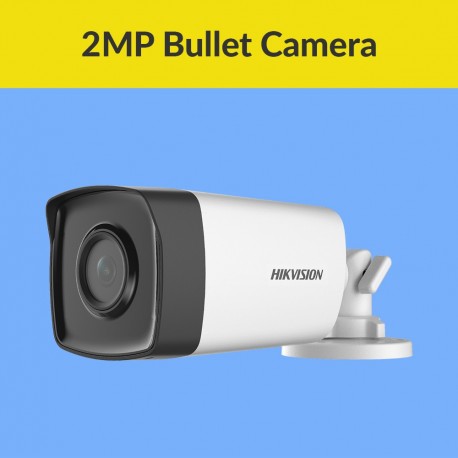

Description Hikvision DS-2CE17D0T-IT5F IP Camera 2 MP Fixed Bullet Camera High quality imaging with 2 MP, 1920 × 1080 resolution 3.6 mm, 6 mm, 8 mm, 12 mm fixed focal lens Up to 80 m IR distance for bright night imaging One port for four switchable signals (TVI/AHD/CVI/CVBS) Water and dust resistant (IP67) Specification Camera Image Sensor2 MP CMOS Max. Resolution1920 (H) × 1080 (V) Min. Illumination0.01 Lux @ (F1.2, AGC ON), 0 Lux with IR Shutter Time PAL: 1/25 s to 1/50,000 s NTSC: 1/30 s to 1/50,000 s Day & NightICR Angle AdjustmentPan: 0 to 360°, Tilt: 0 to 180°, Rotation: 0 to 360° Signal SystemPAL/NTSC Lens Lens Type3.6 mm, 6 mm, 8 mm, 12 mm fixed lens Focal Length & FOV 3.6 mm, horizontal FOV: 79.6°, vertical FOV: 43.5°, diagonal FOV: 93.7° 6 mm, horizontal FOV: 51.9°, vertical FOV: 30°, diagonal FOV: 58.8° 8 mm, horizontal FOV: 39.9°, vertical FOV: 21.9°, diagonal FOV: 46.5° 12 mm, horizontal FOV: 24.6°, vertical FOV: 13.9°, diagonal FOV: 28.1° Lens MountM12 Image Image Parameters SwitchSTD/HIGH-SAT Image SettingsBrightness, Sharpness, Smart IR Frame Rate TVI: 1080P@30fps, 1080P@25fps CVI: 1080P@30fps, 1080P@25fps AHD: 1080P@30fps, 1080P@25fps CVBS: PAL/NTSC Day/Night ModeAuto/Color/BW (Black and White) Wide Dynamic Range (WDR)Digital WDR Image EnhancementDWDR/BLC/HLC/Global Noise ReductionYes White BalanceAuto/Manual AGCYes Interface Video OutputSwitchable TVI/AHD/CVI/CVBS General Material Front Cover: Metal Main Body: Plastic Dimension78.9 mm × 75.4 mm × 216.6 mm (3.10″ × 2.97″ × 8.53″) Approx. 320 g (0.71 lb.) Operating Condition-40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensation) CommunicationHIKVISION-C LanguageEnglish Power Supply12 VDC ± 25% ConsumptionMax. 4.7 W IR RangeUp to 80 m Approval ProtectionIP67
