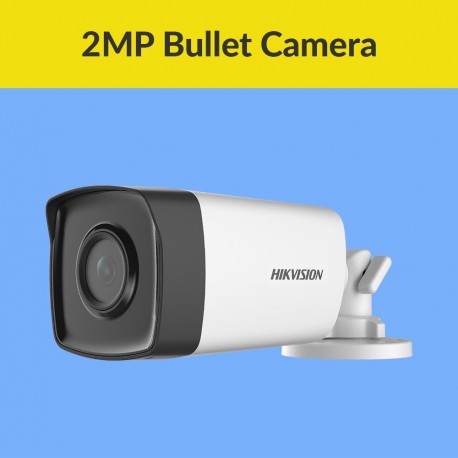

Description Hikvision DS-2CE17D0T-IT3F IP Camera Specification Camera Image Sensor: 2 MP CMOS Max. Resolution: 1920 (H) × 1080 (V) Min. Illumination: 0.01 Lux @ (F1.2, AGC ON), 0 Lux with IR Shutter Time PAL: 1/25 s to 1/50,000 s NTSC: 1/30 s to 1/50,000 s Day & Night: ICR Angle Adjustment: Pan: 0 to 360°, Tilt: 0 to 180°, Rotation: 0 to 360° Signal System: PAL/NTSC Lens Lens Type: 2.8 mm, 3.6 mm, 6 mm, 8 mm, 12 mm fixed lens Focal Length & FOV 2.8 mm, horizontal FOV: 106.4°, vertical FOV: 57.9°, diagonal FOV: 124.6° 3.6 mm, horizontal FOV: 79.6°, vertical FOV: 43.5°, diagonal FOV: 93.7° 6 mm, horizontal FOV: 51.9°, vertical FOV: 30°, diagonal FOV: 58.8° 8 mm, horizontal FOV: 39.9°, vertical FOV: 21.9°, diagonal FOV: 46.5° 12 mm, horizontal FOV: 24.6°, vertical FOV: 13.9°, diagonal FOV: 28.1° Lens Mount: M12 Image Image Parameters Switch: STD/HIGH-SAT Image Settings: Brightness, Sharpness, Smart IR Frame Rate TVI: 1080P@30fps, 1080P@25fps CVI: 1080P@30fps, 1080P@25fps AHD: 1080P@30fps, 1080P@25fps CVBS: PAL/NTSC Day/Night Mode: Auto/Color/BW (Black and White) Wide Dynamic Range (WDR): Digital WDR Image Enhancement: DWDR/BLC/HLC/Global Noise Reduction: Yes White Balance: Auto/Manual AGC: Yes Interface Video Output: Switchable TVI/AHD/CVI/CVBS General Material Front Cover: Metal Main Body: Plastic Dimension: 78.9 mm × 75.4 mm × 216.6 mm (3.10″ × 2.97″ × 8.53″) (Approx. 320 g (0.71 lb.) Operating Condition: -40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensation) Communication: HIKVISION-C Language: English Power Supply: 12 VDC ± 25% Consumption: Max. 3.9 W IR Range: Up to 40 m Approval Protection: IP67
