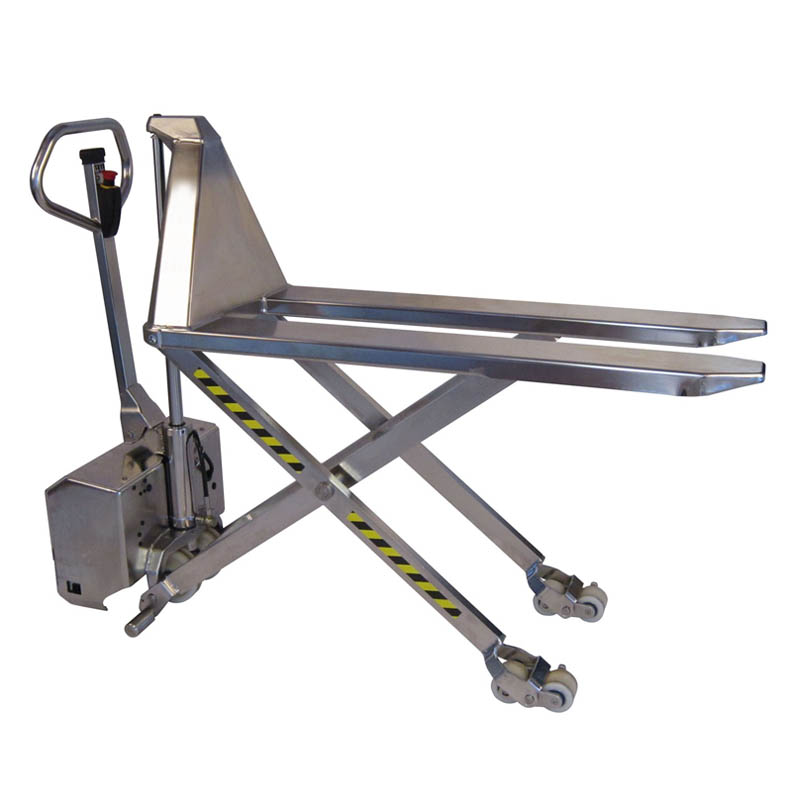

Stainless Steel Electric High Lifter EHL-1004-54-RF-PLUS & EHL-1004-68-RF-PLUS This stainless steel electric high lift pallet truck is designed for corrosive, damp or harsh environments and applications where a high standard of hygiene is required such as meat or fish processing plants, dairies, pharmaceutical and chemical industries. Acid resistant fork chassis – AISI 316 stainless steel Stainless steel handle and pump housing Watertight casing of the lifting motor Closed forks for hygiene and easy cleaning The ergonomic design helps to prevent industrial injuries and back strain of the operator Technical Specifications: Capacity: 1000kg Max. Lift Height: 800 mm Fork Length: 1200 mm Width over Forks: 540 or 680 mm Length without Forks: 440 mm Overall Height: 540 mm Overall Length: 1580 mm Overall Height with Handle: 1195 mm Fork Width: 163 mm Lowered Height: 90 mm Turning Angle of the Wheels: 180° Gangway (pallet: 1200 x 800): 1890 mm Lifting Speed (with/without load): 0.05 / 0.08 m/s Lowering Speed (with/without load): 0.07 / 0.05 m/s Pump Motor: 1.1 kW 12V Ingress Protection: IP 54 Approx. Weight: 120kg
