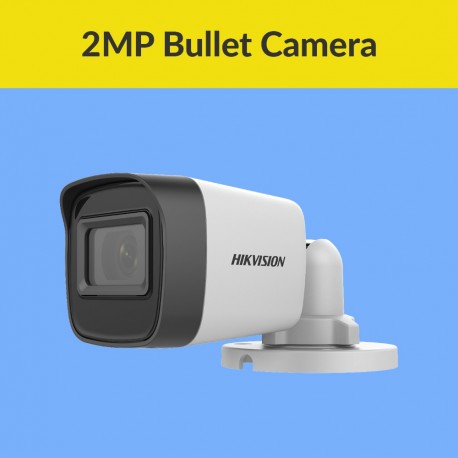

Description Hikvision DS-2CE16D0T-ITPF IP Camera Specification Camera Image Sensor: 2 MP CMOS Max. Resolution: 1920 (H) × 1080 (V) Min. Illumination: 0.01 Lux@(F1.2, AGC ON), 0 Lux with IR Shutter Time PAL: 1/25 s to 1/50, 000 s NTSC: 1/30 s to 1/50, 000 s Day & Night: ICR Angle Adjustment: Pan: 0° to 360°; Tilt: 0° to 90°; Rotate: 0° to 360° Signal System: PAL/NTSC Lens Lens Type: 2.8 mm, 3.6 mm, 6 mm fixed lens Focal Length & FOV 2.8 mm, horizontal FOV: 101°, vertical FOV: 60°, diagonal FOV: 122° 3.6 mm, horizontal FOV: 79.6°, vertical FOV: 43.5°, diagonal FOV: 93.7° 6 mm, horizontal FOV: 51.9°°, vertical FOV: 30°, diagonal FOV: 58.8° Lens Mount: M12 Image Image Parameters Switch: STD/HIGH-SAT Image Settings: Brightness, Sharpness, Smart IR Frame Rate TVI: 1080P@30fps, 1080P@25fps CVI: 1080P@30fps, 1080P@25fps AHD: 1080P@30fps, 1080P@25fps CVBS: PAL/NTSC Day/Night Mode: Auto/Color/BW (Black and White) Wide Dynamic Range (WDR): Digital WDR Image Enhancement: BLC, HLC White Balance: ATW/MANUAL AGC: Support Interface Video Output: Switchable TVI/AHD/CVI/CVBS General Material: Plastic Dimension: 57.9 mm × 60.9 mm × 138.8 mm (2.28″ × 2.39″ × 5.47″) (Approx. 141 g (0.31 lb.) Operating Condition: -40° C to 60° C (-40° F to 140° F), Humidity 90% or less (no condensation) Communication: HIKVISION-C Language: English Power Supply: 12 VDC ± 25% Consumption: Max. 2.2 W IR Range: Up to 25 m Approval Protection: IP67
