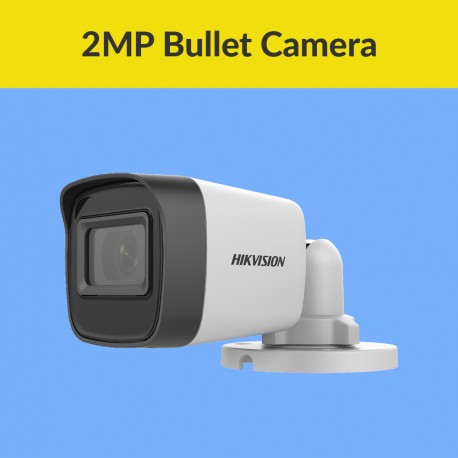

Description Hikvision DS-2CE16D0T-EXIPF IP Camera Resolution 2MP Turbo Camera (1920 × 1080) IR Range Up to 20m IR distance for Bright Night Imaging Frame Rate TVI: 1080p@25fps/30fps, AHD: 1080p@25fps/30fps Smart Features DWDR, BLC, 2D-DNR, Day & Night with ICR Video Output Mode Switchable TVI/AHD/CVI/CVBS Protection Level Water and dust resistant (IP66) Camera Image Sensor 2 MP CMOS Signal System PAL/NTSC Resolution 1920 (H) × 1080 (V) Frame Rate TVI: 1080p @25fps/30fps AHD: 1080p @25fps/30fps CVI: 1080p @25fps/30fps CVBS: PAL/NTSC Min. Illumination 0.02 Lux @ (F1.2, AGC ON), 0 Lux with IR Shutter Time PAL: 1/25 s to 1/50,000 s; NTSC: 1/30 s to 1/50,000 s Lens 3.6 mm Fixed Lens Field of View Horizontal FOV: 81°, Vertical FOV: 42°, Diagonal FOV: 100° Lens Mount M12 Day & Night ICR WDR (Wide Dynamic Range) Digital WDR Angle Adjustment Pan: 0° to 360°, Tilt: 0° to 90°, Rotation: 0° to 360° Menu Image Mode STD/HIGH-SAT AGC Yes Day/Night Mode Auto / Color / BW (Black and White) White Balance Auto AE (Auto Exposure) Mode DWDR, BLC, Global Noise Reduction 2D DNR Language English Function Brightness, Mirror, Smart IR, Sharpness Interface Video Output Switchable TVI / AHD / CVI / CVBS General Operating Conditions -40°C to 60°C (-40°F to 140°F), Humidity: 90% or less (non-condensing) Power Supply 12 VDC ± 25% Consumption Max. 3.3 W Protection Level IP66 Material Plastic IR Range Up to 20 m Communication HIKVISION-C Dimension 138.8 mm × 60.9 mm × 57.9 mm (5.465″ × 2.389″ 2.278″) Weight Approx. 145 g (0.32 lb.)
