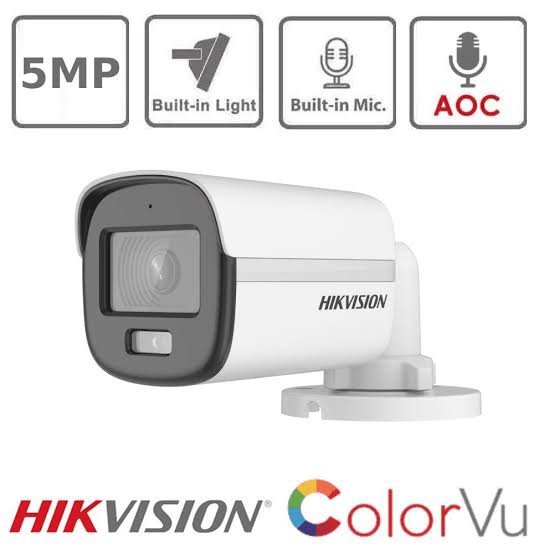

Description Hikvision DS-2CE10KF0T-PFS IP Camera Specification Camera Image Sensor: 3K CMOS Signal System: PAL/NTSC Resolution: 2960 (H) × 1665 (V) Frame Rate TVI: 3K@20fps, 4 MP@25fps/30fps, 1080p@25fps/30fps AHD: 5 MP@20fps, 4 MP@25fps/30fps CVI: 4 MP@25fps/30fps CVBS: PAL/NTSC Min. Illumination: 0.001 Lux @ (F1.0, AGC ON), 0 Lux with white light Shutter Time: PAL: 1/25 s to 1/50,000s;NTSC: 1/30 s to 1/50,000 s Lens: 2.8 mm and 3.6 mm fixed focal lens Field Of View 2.8 mm, horizontal FOV: 102°, vertical FOV: 56°, diagonal FOV: 122° 3.6 mm, horizontal FOV: 80°, vertical FOV: 45°, diagonal FOV: 96° Lens Mount: M12 Light Alarm: Solid Light Alarm (White Light) Day & Night: 24/7 Color Imaging WDR (Wide Dynamic Range): Digital WDR Angle Adjustment: Pan: 0° to 360°, Tilt: 0° to 90°, Rotation: 0° to 360° Image White Light: Auto/Off Image Mode: STD/HIGH-SAT/HIGHLIGHT AGC: Yes Day/Night Mode: Color White Balance: Auto/Outdoor/Global/Manual AE (Auto Exposure) Mode: BLC;HLC;Global;HLS;DWDR Noise Reduction: 2D DNR Language: English Function: Defective Pixel Correction;Sharpness;Mirror;Contrast;Brightness;Anti-Banding;Smart Light Interface Video Output: Switchable TVI/AHD/CVI/CVBS Audio In: Built-in mic General Operating Conditions: -40°C to 60°C (-40°F to 140°F), Humidity: 90% or less (non-condensing) Power Supply 12 VDC ± 25%, *You are recommended to use one power adapter to supply the power for one camera. Consumption: Max. 2.5 W Protection Level: IP67 Material: Plastic White Light Range: Up to 20 m Communication: HIKVISION-C Dimension: 161.1 mm × 70 mm × 70 mm (6.34″ × 2.76″ × 2.76″) (Approx. 238 g (0.52 lb.)
