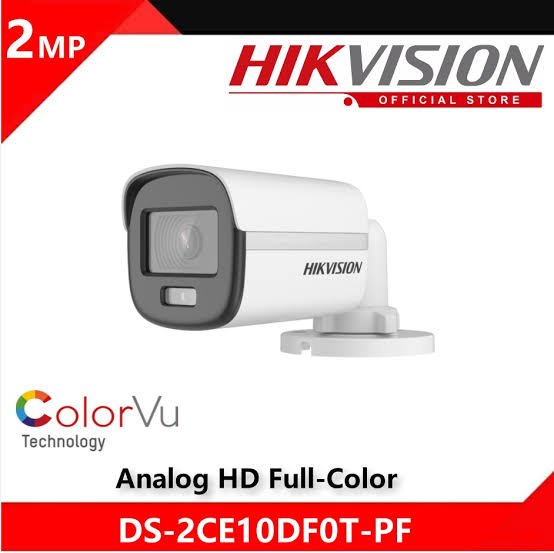

Description Hikvision DS-2CE10DF0T-PF 3.6mm IP Camera Camera Image Sensor: 2 MP CMOS Max. Resolution: 1920 (H) × 1080 (V) Min. Illumination: Color: 0.001 Lux @ (F1.0, AGC ON), B/W: 0 Lux with white light Shutter Time: PAL: 1/25 s to 1/50,000 s;NTSC: 1/30 s to 1/50,000 s Angle Adjustment: Pan: 0° to 360°, Tilt: 0° to 90°, Rotation: 0° to 360° Signal System: PAL/NTSC Lens Lens Type: 2.8 mm, 3.6 mm, 6 mm fixed focal lens Focal Length & FOV 2.8 mm, horizontal FOV: 98°, vertical FOV: 51°, diagonal FOV: 115° 3.6 mm, horizontal FOV: 76°, vertical FOV: 41°, diagonal FOV: 90° 6 mm, horizontal FOV: 50°, vertical FOV: 27°, diagonal FOV: 58° Lens Mount: M12 Illuminator Supplement Light Type: White Light Supplement Light Range: White Light Distance: Up to 20 m Smart Supplement Light: Yes Image Image Parameters Switch: STD/HIGH-SAT/HIGHLIGHT Image Settings: Brightness;Mirror;Sharpness;Anti-Banding;AGC Frame Rate TVI: 1080p@25fps/30fps CVI: 1080p@25fps/30fps AHD: 1080p@25fps/30fps CVBS: PAL/NTSC Day/Night Mode: Color Wide Dynamic Range (WDR): Digital WDR Image Enhancement: BLC;HLC;Global Noise Reduction: 3D DNR/2D DNR White Balance: Auto/Manual Interface Video Output: Switchable TVI/AHD/CVI/CVBS Alarm: Solid Light Alarm (White Light) General Power 12 VDC ± 25% *You are recommended to use one power adapter to supply the power for one camera. Max. 2.4 W Material: Plastic Dimension: 161.1 mm × 70 mm × 70 mm (6.34″ × 2.76″ × 2.76″) (Approx. 229 g (0.50 lb) Operating Condition: -40°C to 60°C (-40°F to140°F), Humidity: 90% or less (non-condensing) Communication: HIKVISION-C Language: English Approval Protection: IP67
