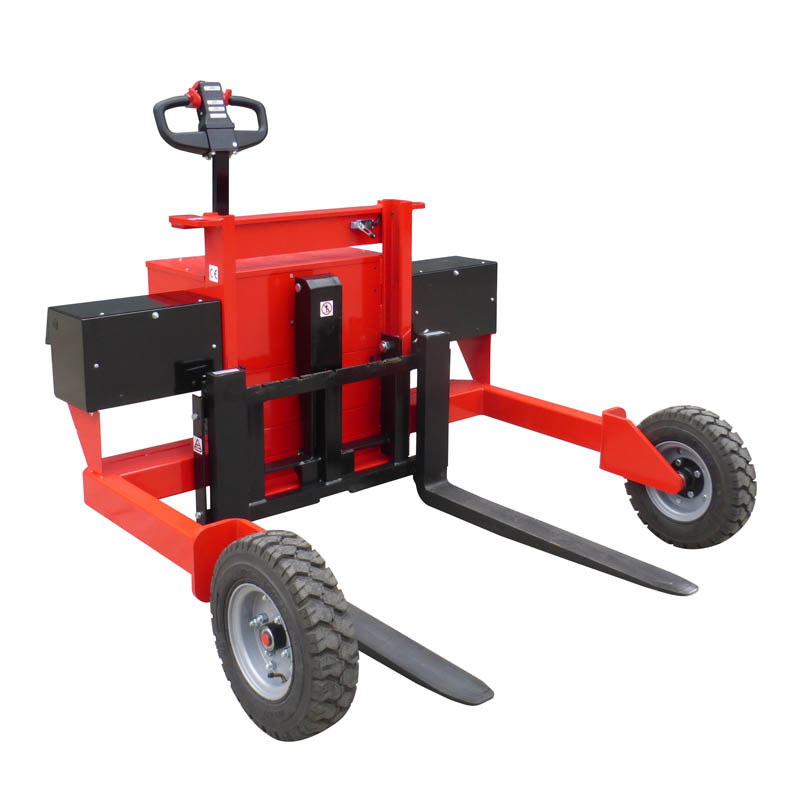

Electric Rough Terrain Pallet Truck This heavy duty electric rough terrain pallet truck has two 12V batteries which allows it to be used as a fully powered pallet truck. Electric lift and drive 2 heavy duty batteries for full day operation Built-in charger Great manoeuvrability Adjustable width over forks Wheels fitted onto sealed bearings Pneumatic load tyres Special sizes can be offered 240V charger – standard, included. Optional 110V charger available Technical Specifications: Capacity 1500kg Drive Wheel Motor 1 x 2500 AC Battery 2 x 100Ah Load Centre 500 mm Length of Forks 1000 mm Width over Forks Adjustable 160 – 900 mm Max. Pallet Size 1200 x 1200 mm Straddle Gap 1266 mm Overall width 1539 mm Overall Length 1811 mm Lowered Fork Height 50 mm Raised Fork Height 400 mm Wheels Super Elastic / Pneumatic Gradeability: Gradient TNE1500-AC 0% 1500kg 1% 1500kg 3% 1500kg 4% 1500kg 5% 1500kg 6% 1500kg 8% 1500kg 10% 1500kg 14% 1500kg 15% 1500kg 18% 1500kg 20% – 23% 1200kg 25% – 30% 800kg 40% 500kg 45% – 50% 300kg 60% 0kg NOTE: Please allow approx. 6 weeks for delivery
