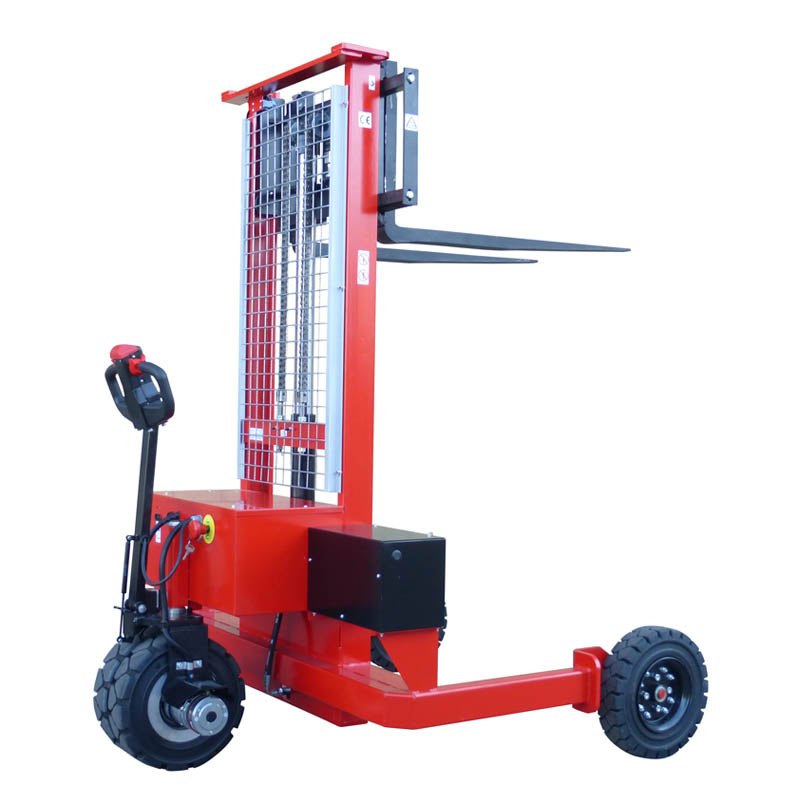

Electric Rough Terrain Pallet Stacker Built with a 1200kg load capacity and supplied in 3 raised fork height versions: 1600mm (RTS 12.16) 2500mm (RTS 12.25) 3000mm (RTS 12.30) This rough terrain pallet stacker has straddle legs which provide great stability. The large wheels and raised chassis make it ideal for rough terrain. It is suitable for loading, unloading and transportation of most standard pallets. Designed with 2 independently powered drive wheels. This rough terrain stacker can travel inclines of up to 10% with full load and 15% with 600kg. The rough terrain pallet stacker can for example be used in underground car parks and travel up ramps between levels. The stacker is fitted with two batteries and an on board charger. The charger is single phase and plugs into standard mains. The batteries are best charged overnight or at least 8 hours (if almost empty). The batteries will last about 5 hours under normal working conditions. 240V charger – standard, included. Optional 110V charger available. We can also offer special attachments such as crane jib, boom, drum clamp, load protectors, extended forks and sliding hook. The Electric Rough Terrain Pallet Stacker is also available with raised fork heights of 3500mm. Please contact us for more information. Technical Specifications: Capacity: 1200kg Load Centre: 500 mm Length of Forks: 1100 mm Width over Forks: Adjustable Max. Pallet Size: 1200 x 1000 mm Straddle Gap: 1260 mm Lowered Fork Height: 50 mm Raised Fork Heights: 1600 mm, 2500 mm or 3000 mm Overall Length: 1900 mm Overall width: 1500 mm Battery: 2x12V / 100Ah Wheels: Pneumatic / Solid Elastic ø 400 NOTE: Please allow approx. 6 weeks for delivery
